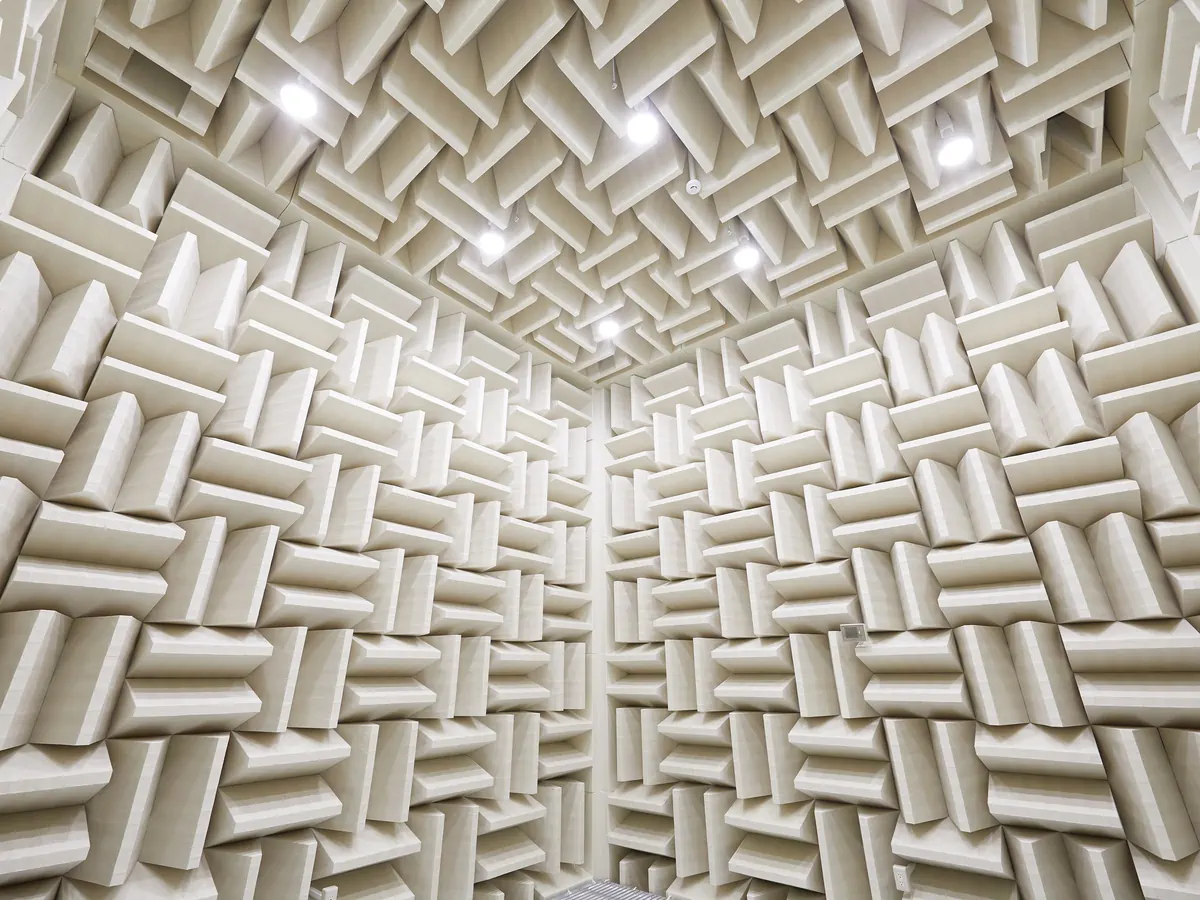

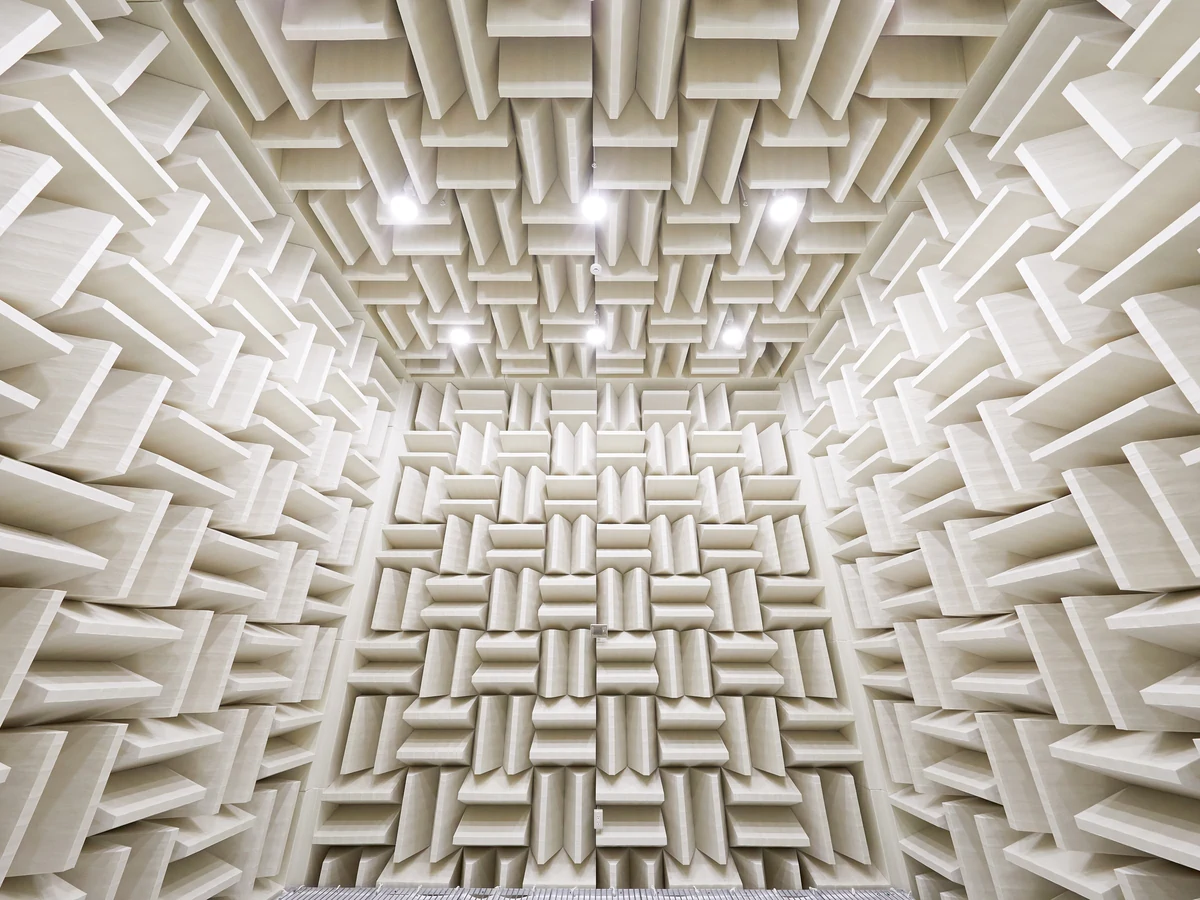

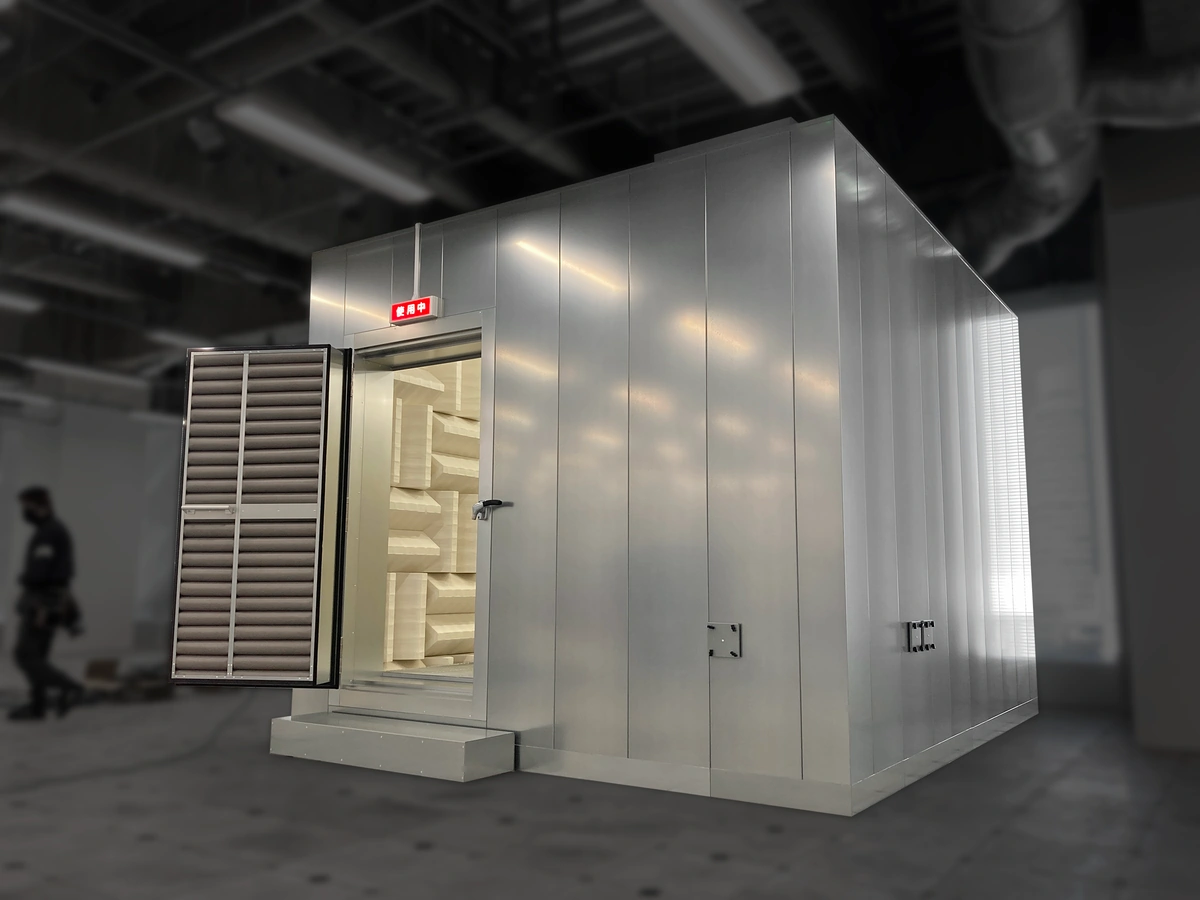

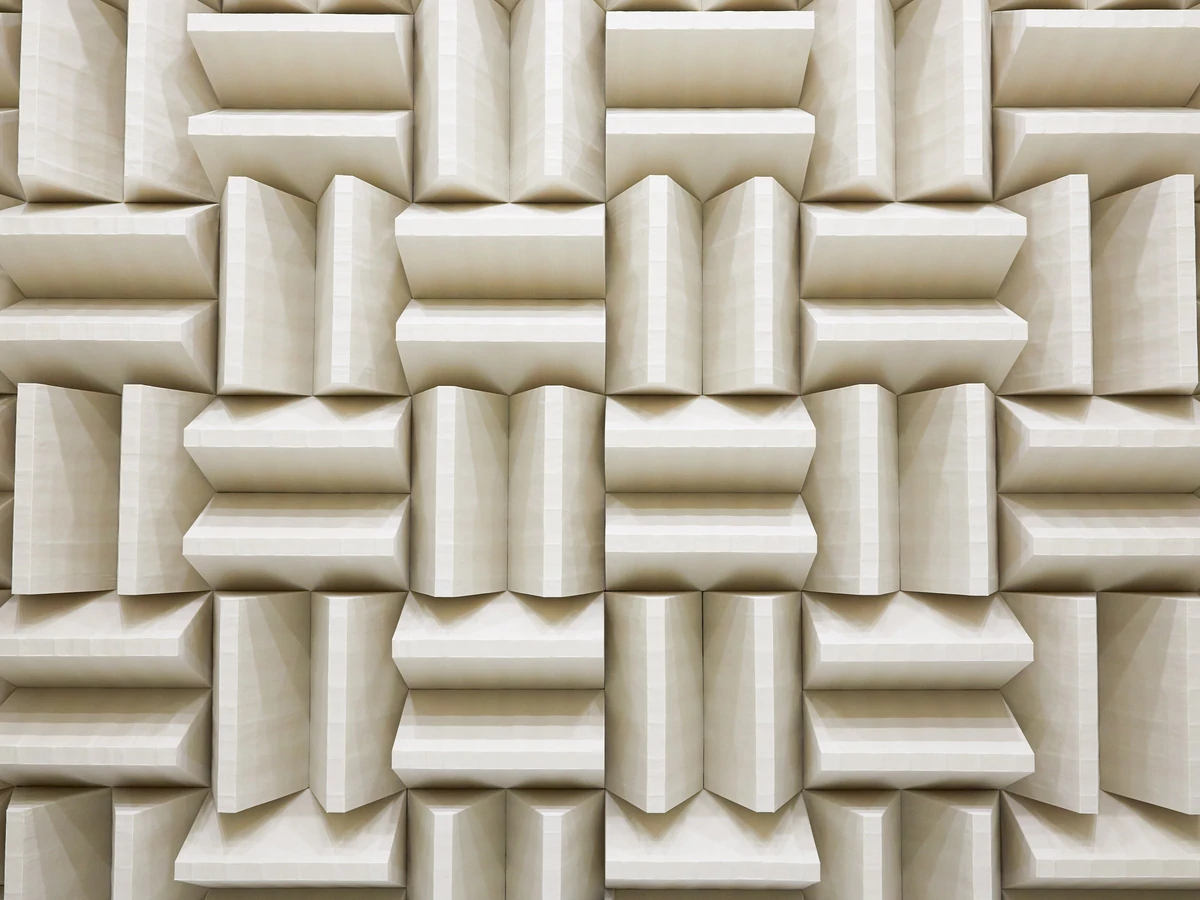

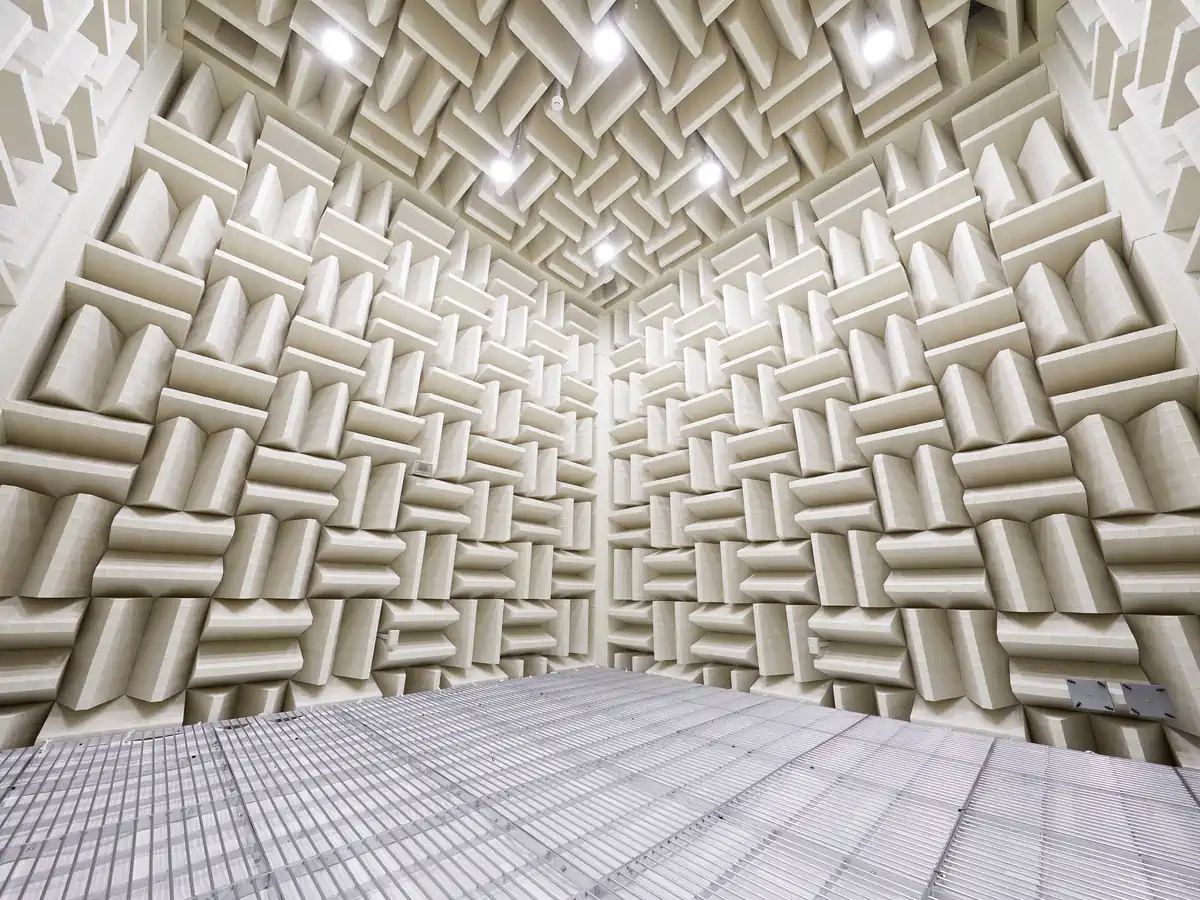

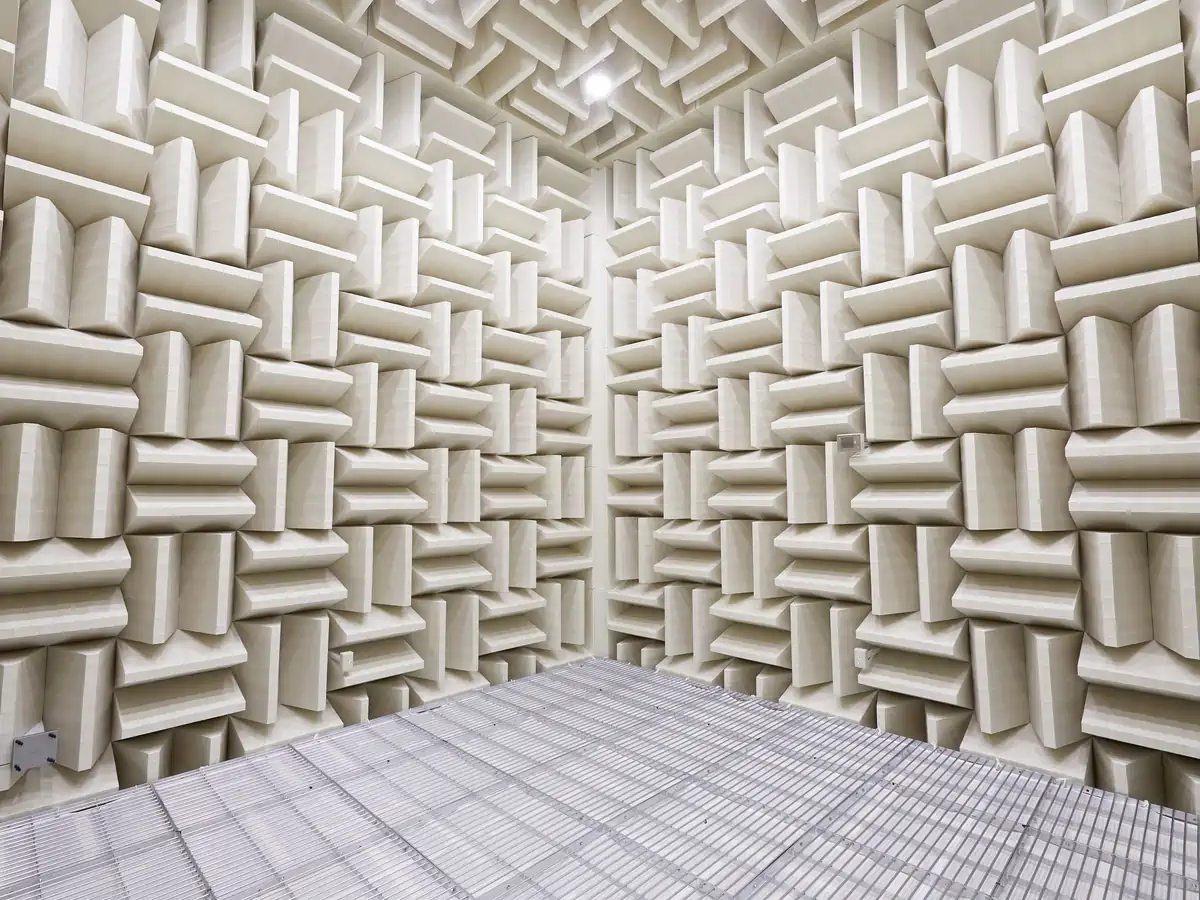

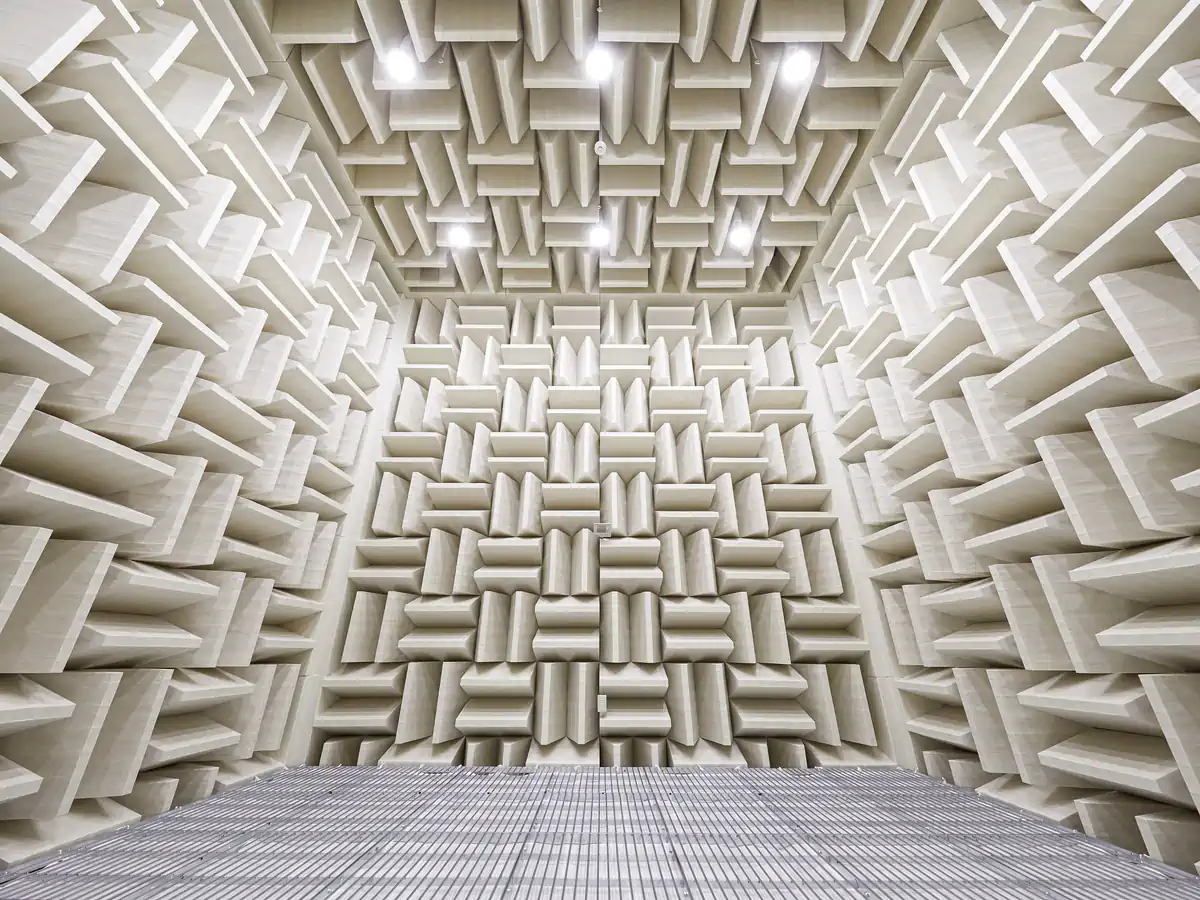

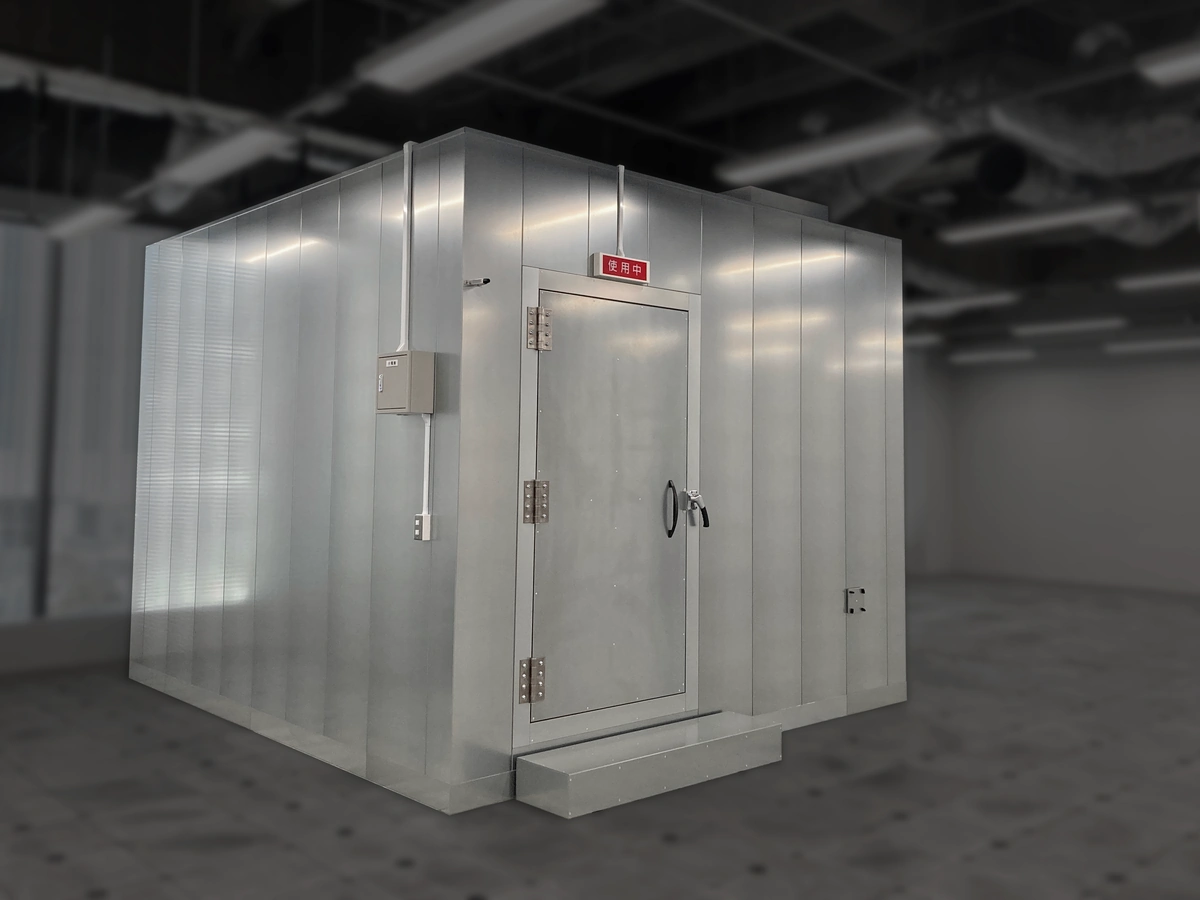

The fully anechoic chamber features six surfaces madeup of Sola metal panels and sound-absorbing wedges on the walls, floor and ceiling. The basic anechoic chamber construct using concrete, plasterboard, and a special cloth-type sound-absorbing wedge. Our anechoic chamber, on the other hand, has the benefits of being simple to assemble, inexpensive, precise, and portable.
An anechoic chamber is a precision acoustical measurement instrument designed to create a free-field environment without reflections and noise interference. Ideally, the inverse square law applies perfectly, with sound levels from a spherical source decreasing by 6dB for each doubling of distance. This requires the room’s boundaries to have a sound absorption coefficient of one at all angles. While real-world applications may have slight deviations, these chambers minimize sound reflections with acoustically absorbing materials on all six surfaces.
Precision equipment, automobile parts, electronic parts, nano technology related products, environment-related products, etc.
Sound power level, sound intensity measurement, abnormal noise inspection, product performance acoustic measurement, etc.
Ordinary, precision sound level meter, FFT analyzer, vibration meter, various acoustic evaluation equipment, etc.
Non-flammable sound absorption wedge: T-250:
Sound absorption wedge thickness 250mm
Sound insulation Solameta panel: 3TS65
Compact wedge HV02W: Sound absorption wedge
thickness 310mm
Sound insulation Solameta panel: 3TS65
Non-flammable sound absorption wedge: T-500:
Sound absorption wedge thickness 500mm
Sound insulation Solameta panel: 3TS65
| Models | Wedge | Effective (mm) | External Dimensions (mm) |
|---|---|---|---|
| DMC-AFAC-27313260 | HV02W | W2000 x L2400 x H2450 | W2700 x L3100 x H3260 |
| DMC-AFAC-31373260 | HV02W | W2400 x L3000 x H2450 | W3100 x L3700 x H3260 |
| DMC-AFAC-37433260 | HV02W | W3000 x L3600 x H2450 | W3700 x L4300 x H3260 |
| DMC-AFAC-27313200 | T-250 | W2000 x L2400 x H2450 | W2700 x L3100 x H3200 |
| DMC-AFAC-31373200 | T-250 | W2400 x L3000 x H2450 | W3100 x L3700 x H3200 |
| DMC-AFAC-37433200 | T-250 | W3000 x L3600 x H2450 | W3700 x L4300 x H3200 |
| DMC-AFAC-32363700 | T-500 | W2000 x L2400 x H2450 | W3200 x L3600 x H3700 |
| DMC-AFAC-36423700 | T-500 | W2400 x L3000 x H2450 | W3600 x L4200 x H3700 |
| DMC-AFAC-42483700 | T-500 | W3000 x L3600 x H2450 | W4200 x L4800 x H3700 |
| Hz | Wedge | 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K |
|---|---|---|---|---|---|---|---|---|---|
| Guarantee Value of Sound Insulation | HV02W | -25 | 30 | 36 | 40 | 49 | 53 | 55 | 54 |
| T-250 | -28 | 35 | 41 | 45 | 51 | 55 | 57 | 56 | |
| T-500 | -32 | 40 | 46 | 50 | 56 | 60 | 62 | 61 | |
| Actual Value of Sound Insulation | HV02W | 36.8 | 52.4 | 55.3 | 61.8 | 66.2 | 70 | 79.3 | 79.9 |
| T-250 | 42.4 | 43 | 53.9 | 67.1 | 67.7 | 71.9 | 75.4 | 84.9 | |
| T-500 | 34.8 | 51 | 63.5 | 69.8 | 73.8 | 78.3 | 81.6 | 88.1 |
| Hz | 63 | 80 | 100 | 125 | 160 | 200 | 250 |
|---|---|---|---|---|---|---|---|
| DMC-AFAC-37433260 | 0.29 | 0.46 | 0.68 | 0.91 | 1.13 | 1.62 | 2.84 |
| DMC-AFAC-37433200 | 0.14 | 0.17 | 0.22 | 0.29 | 0.43 | 0.53 | 0.95 |
| DMC-AFAC-42483700 | 0.35 | 0.51 | 0.82 | 1.55 | 3.14 | 3.14 | 3.14 |
