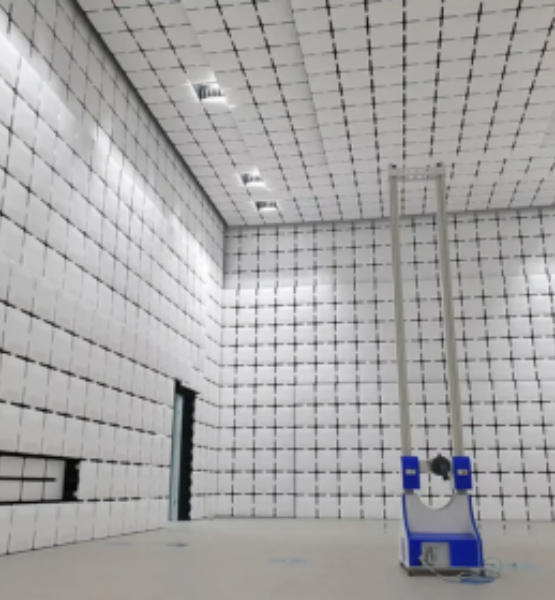

DMC offers Semi Anechoic EMC Chamber at 3 meter, 5 meter and 10 meter test distance for Full Compliant EMC Emission and Immunity testing Commercial, Automotive, Military and Education sector and offers better performance for NSA, SVSWR and FU.

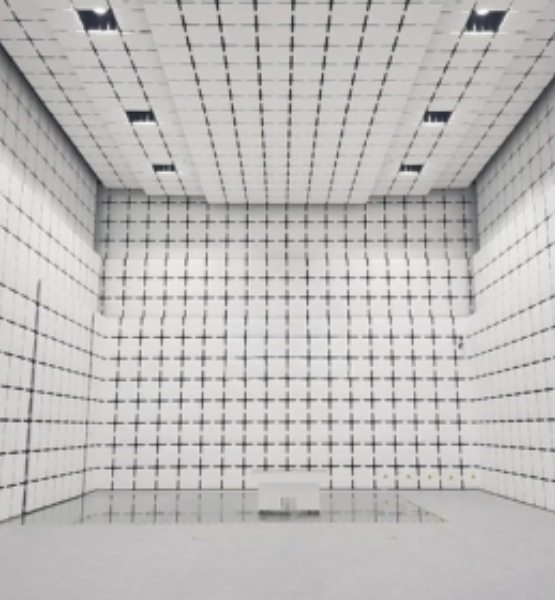

DMC-SAC-10M Semi Anechoic EMC chamber are used for radiated emission and radiated immunity testing at 10 meter test distance with Quiet zone option up-to 6m. The chamber is designed for compliant emission and immunity testing. The self-standing steel structure with DMC-PAN series PAN-type modular shielding system per MIL-STD-285 and unique arrangement of Polypropylene based hybrid absorbers in specular areas with high performance ferrite tiles provides broadband performance up to 40 GHz.
DMC 10 meter compliant test chambers has flexibility to provide custom solutions for different quiet zone requirements and performance options. This semi anechoic chamber is a multi-functional solution for full compliance testing as per various international EMC regulations.
Chamber Type |
DMC-SAC-10M |
||
External dimension |
19.5m x 12.0m x 8.4m (LxWxH) |
||
Quiet Zone |
6.0 m |
||
Measuring distances |
5.0 m and 3.0 m |
||
Load capacity |
up-to 80 tons with special turn table system |
||
Frequency range |
30 MHz to 18 GHz |
