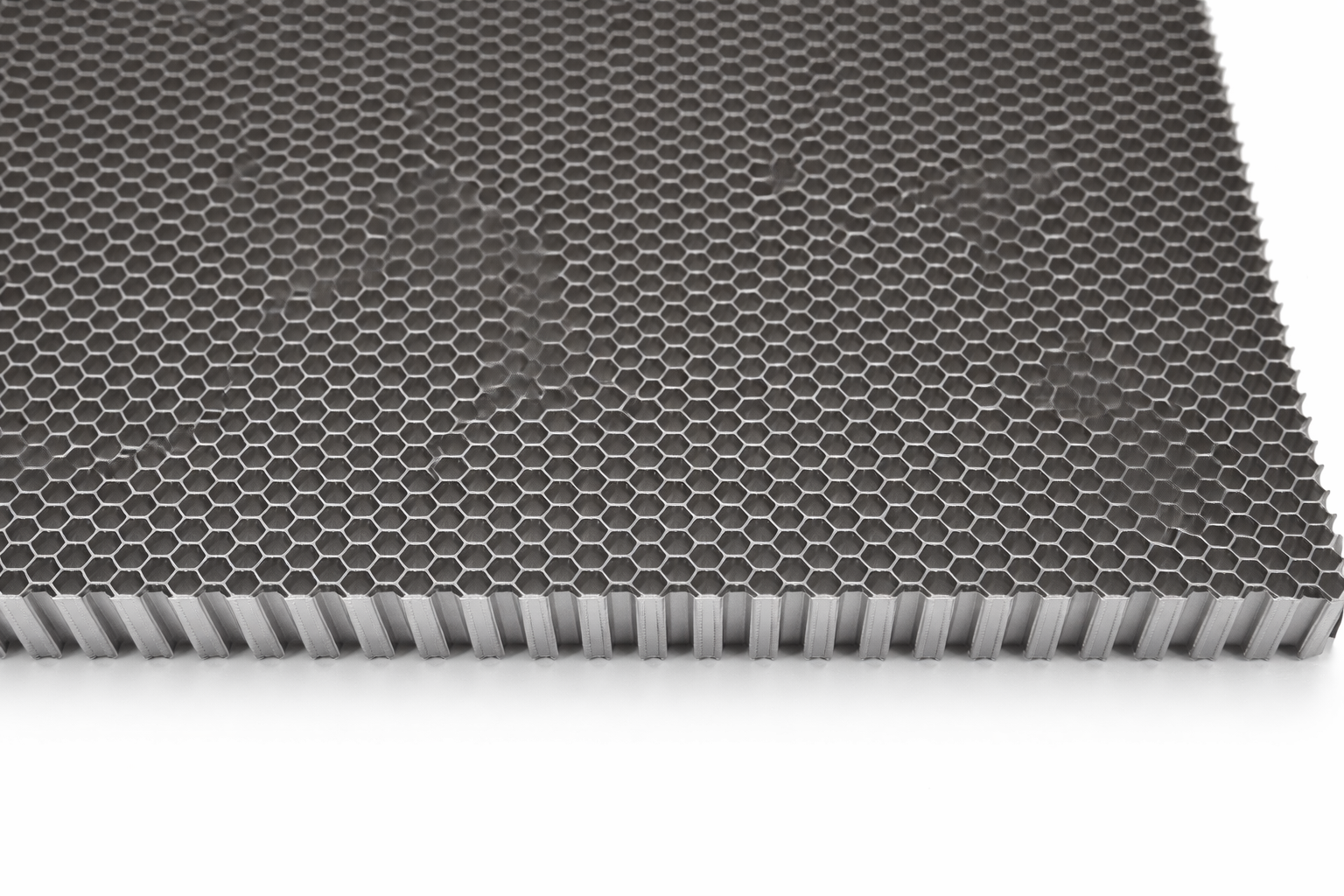

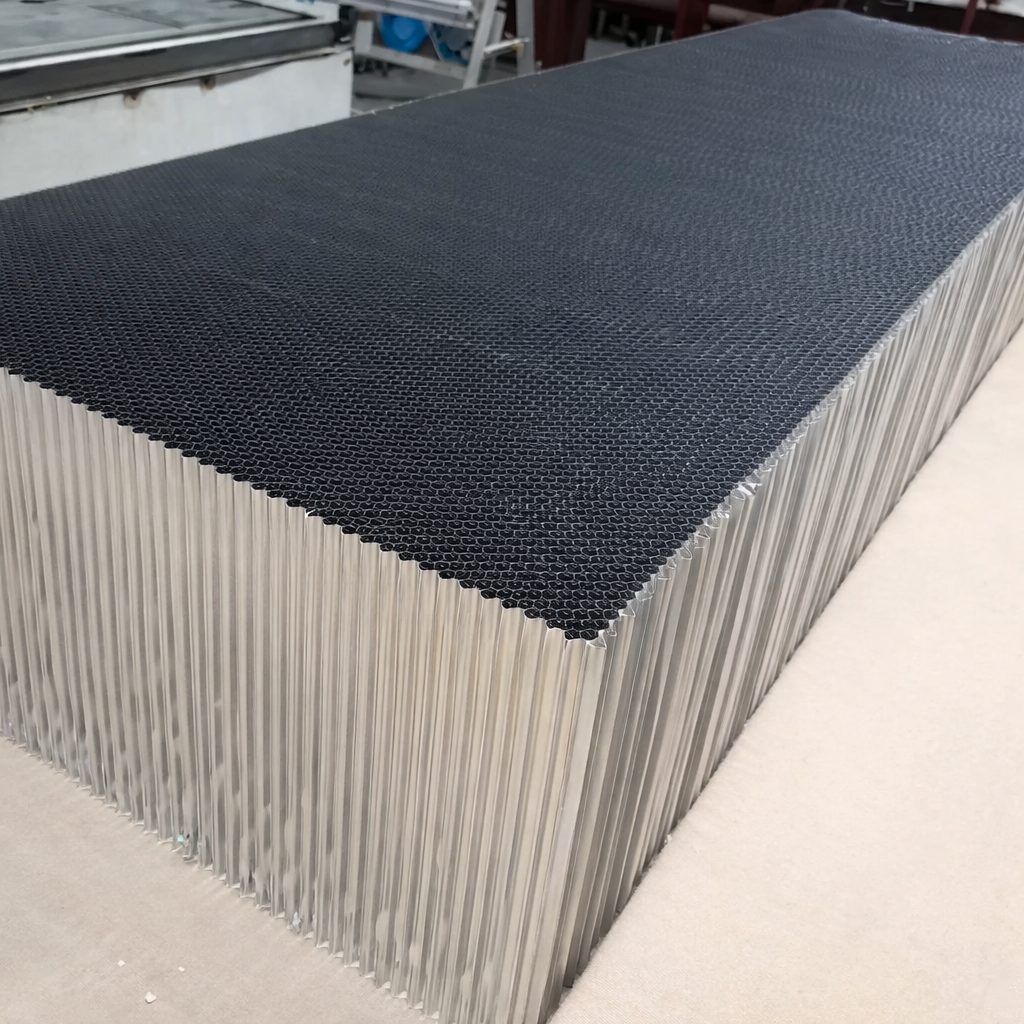

Aluminum Honeycomb Core is a lightweight and high-strength material designed for aerospace, construction, EMI shielding, ventilation, and industrial applications. Made from high-quality 3003/5052 aluminum alloy, it offers excellent rigidity, corrosion resistance, airflow performance, and superior strength-to-weight ratio
DMC aluminum honeycomb cores are made of 3003 or 5052 aluminum alloy foil.
| Designation | Alloy | Size (mm) | Size (inch) | Compression Strength psi (Bare) | Plate Shear Strength psi (L) | Plate Shear Modulus ksi (L) | Plate Shear Strength psi (W) | Plate Shear Modulus ksi (W) |
|---|---|---|---|---|---|---|---|---|
| DMC-AH-3003 | 3003 | 6.4 | 1/4 | 625 | 365 | 70 | 215 | 38 |
| DMC-AH-3003 | 3003 | 9.5 | 3/8 | 340 | 230 | 45 | 130 | 22 |
| DMC-AH-3003 | 3003 | 12.7 | 1/2 | 190 | 140 | 28 | 80 | 14 |
| DMC-AH-3003 | 3003 | 17 | 3/4 | 120 | 100 | 20 | 65 | 11 |
| DMC-AH-3003 | 3003 | 25.4 | 1 | 80 | 65 | 14 | 45 | 7 |
| DMC-AH-5052 | 5052 | 9.5 | 3/8 | 362 | 250 | 55 | 160 | 26 |
| Notes: Test data obtained at 0.625 inch thickness. Size available on request. The above values are not guaranteed and should be used as indication only. | ||||||||
