Buy DMC-PU-PY-MI-200

Starts From : $85.00
Category : RF & EMC Absorber
Availability : In Stock

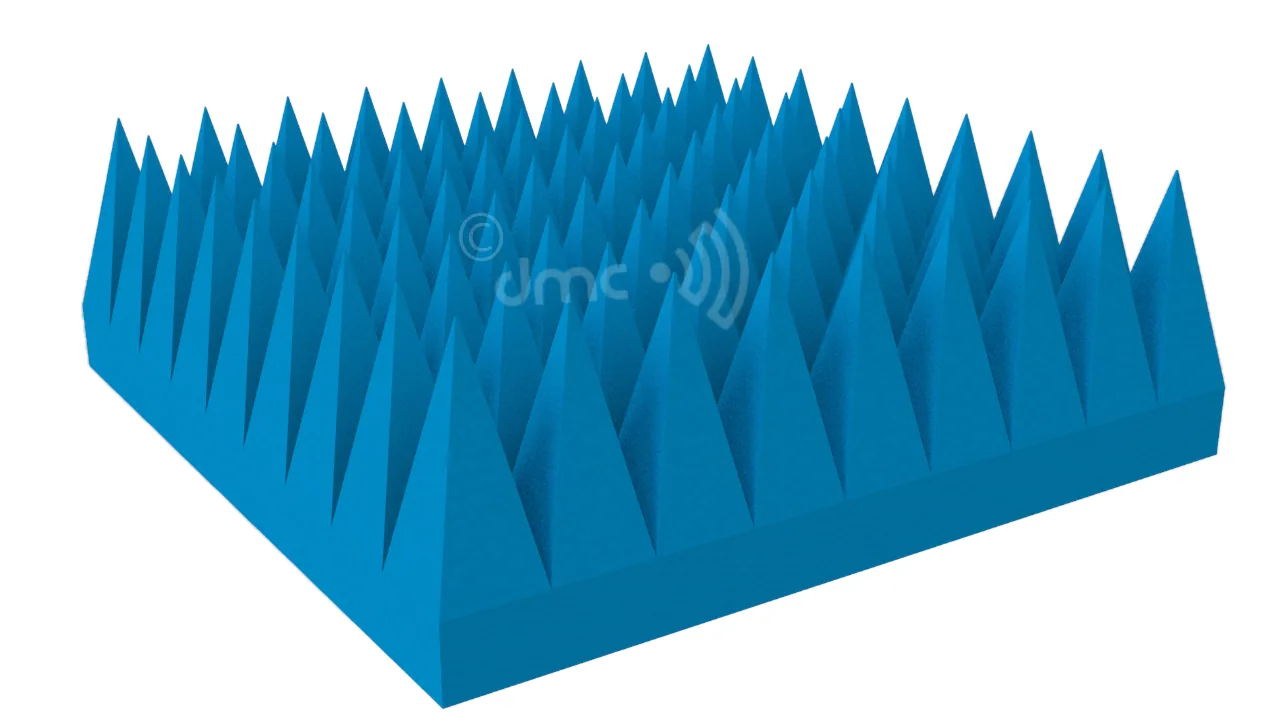

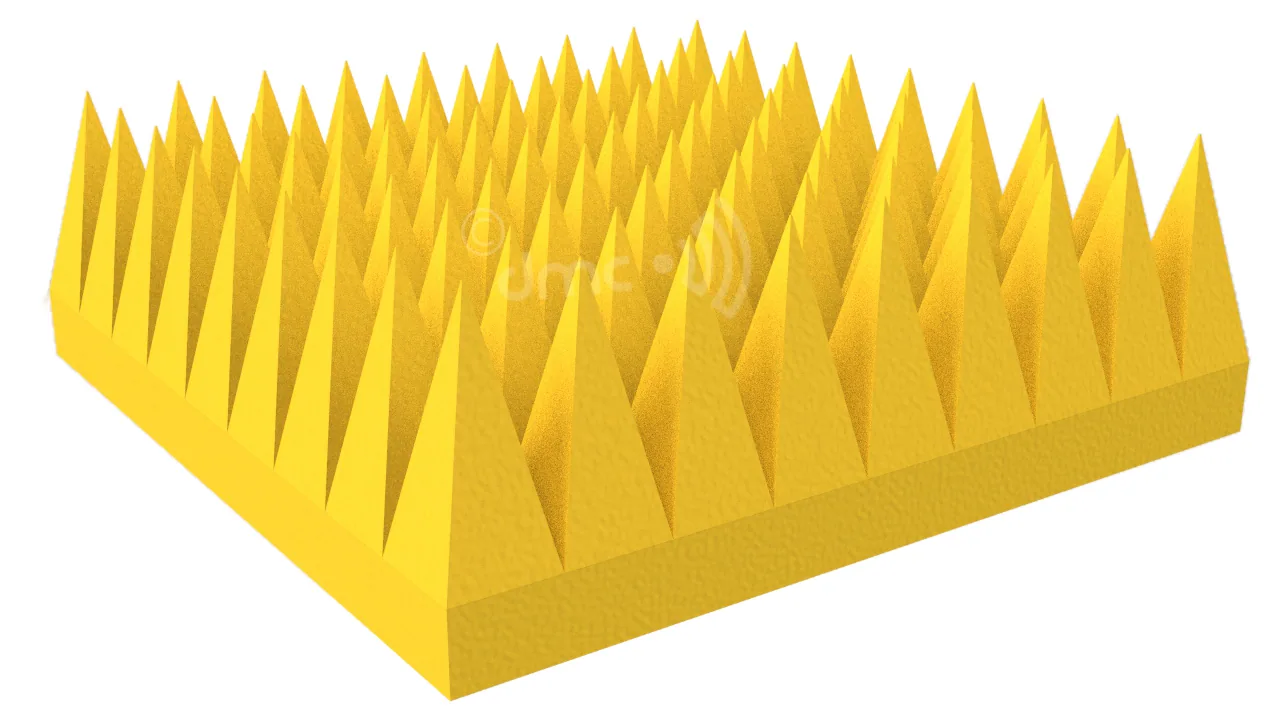

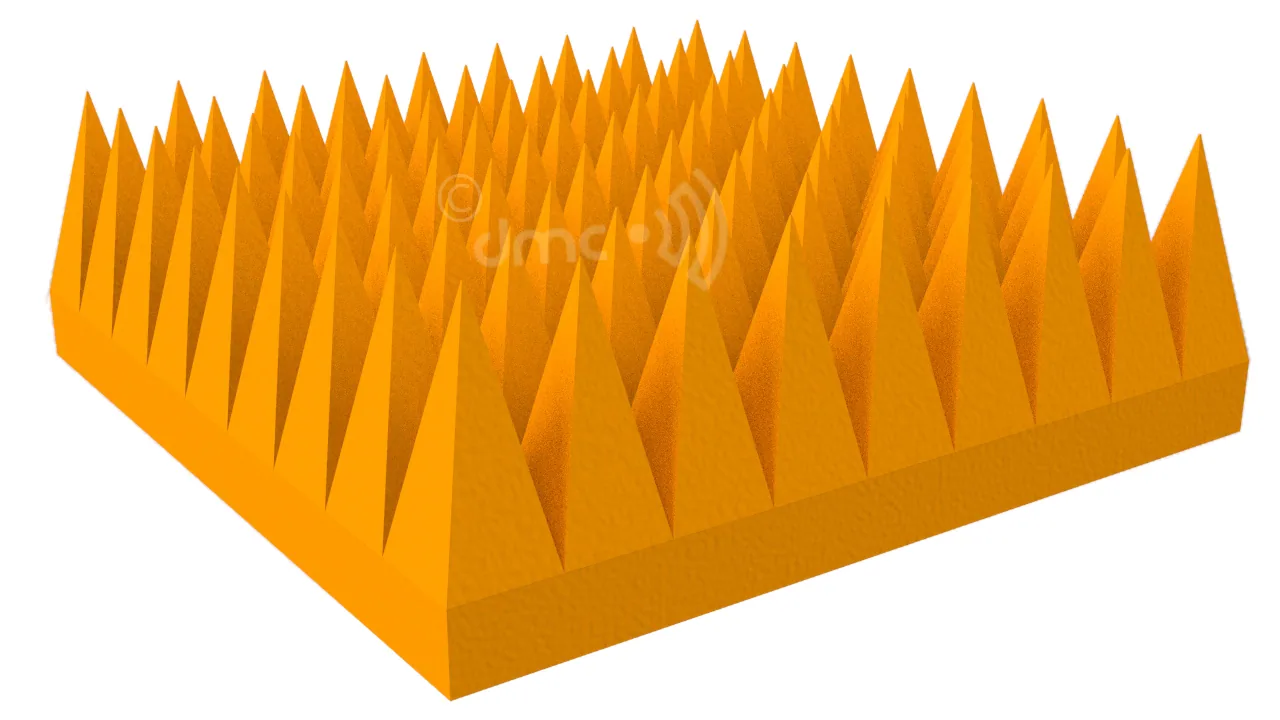

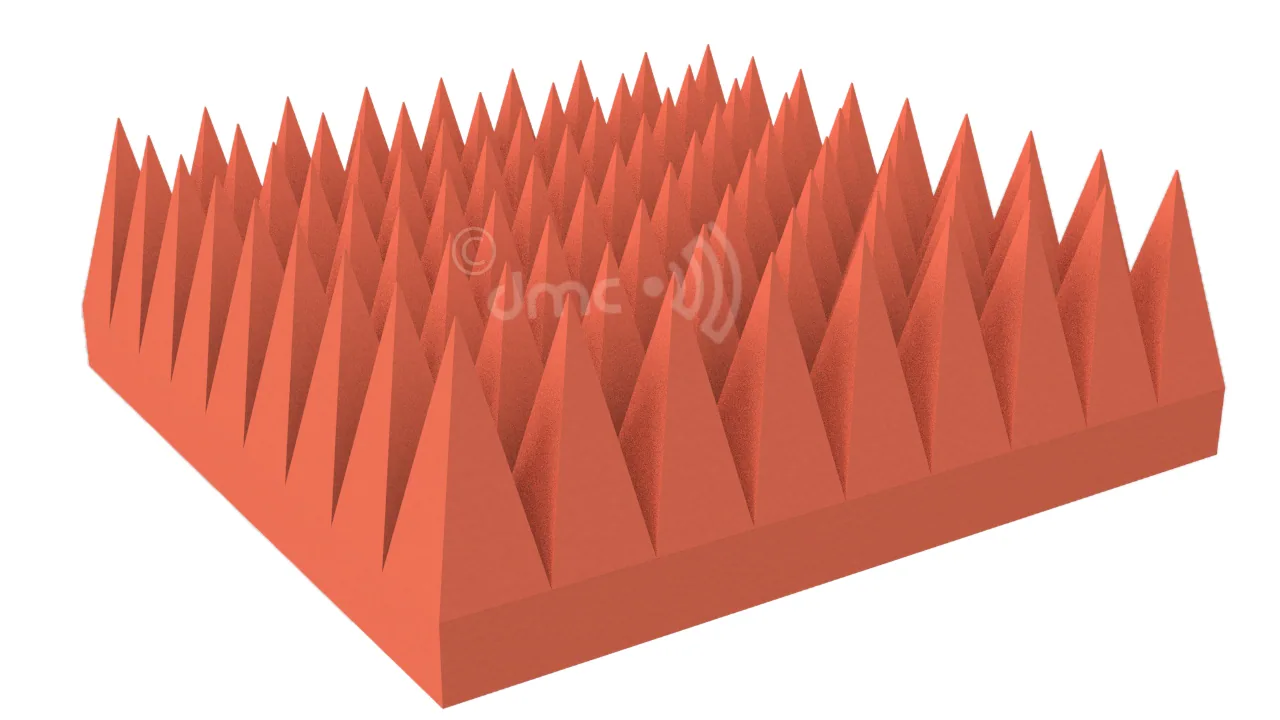

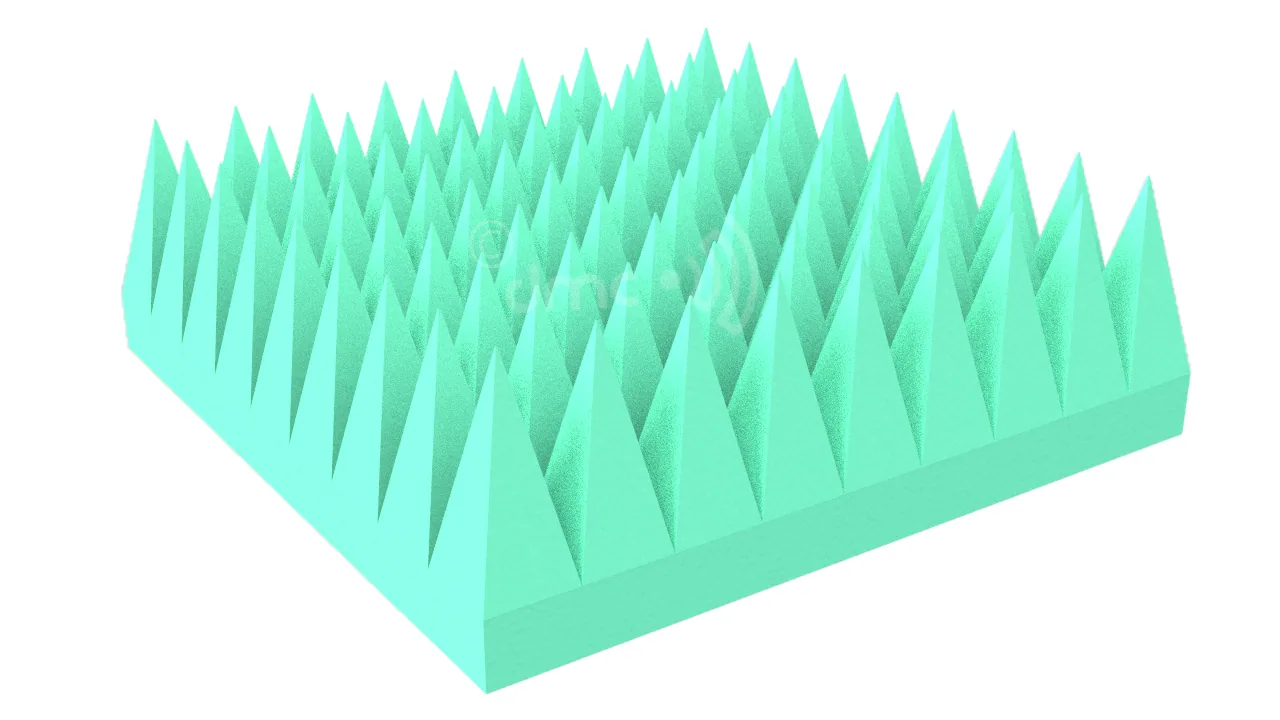

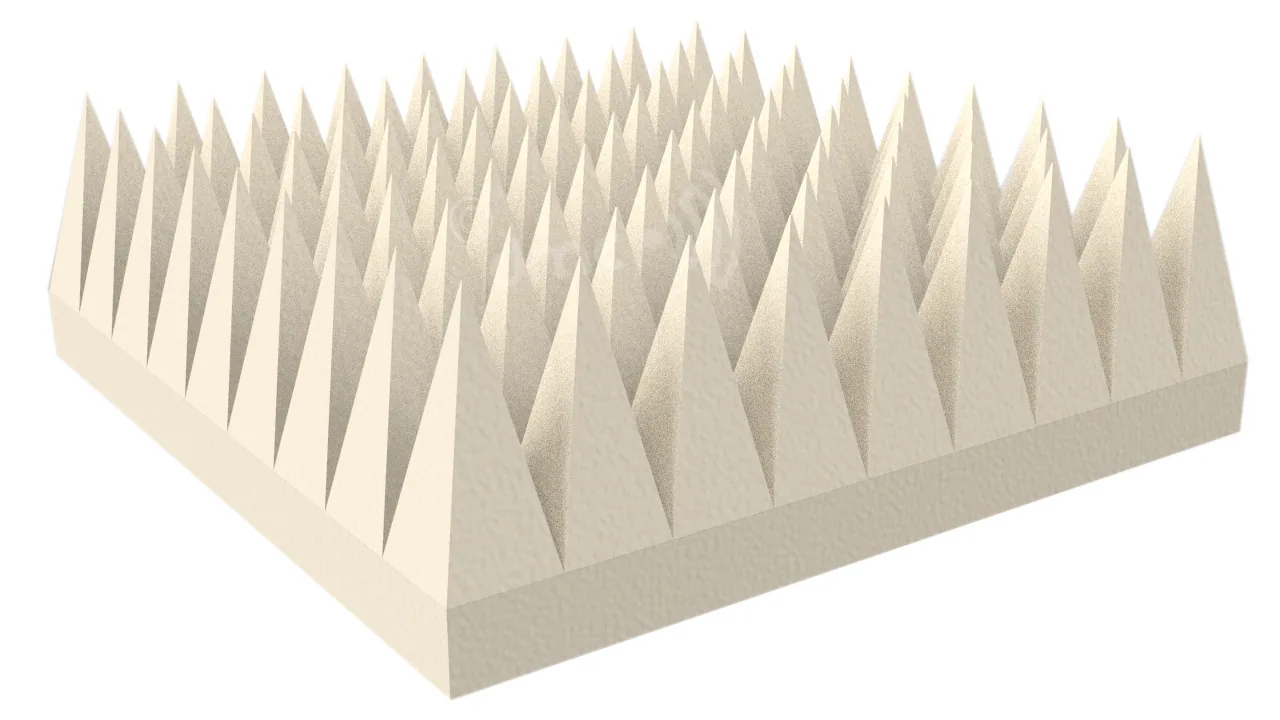

The DMC-PU-PY-MI-200 RF and Microwave Absorber is a pyramidal polyurethane foam absorber designed for Antenna test chambers. It provides wideband absorption from 0.5 GHz up to 110GHz with low reflectivity, high power handling, fire resistance, and stable performance for accurate testing environments.

Add to Cart Datasheet

Note: Price may vary based on price slab, required accessories, installation, shipping and delivery cost. Our sales manager will estimate and provide final quote after order is placed.

The DMC-PU-PY-MI-200 RF and Microwave Absorber is a pyramidal polyurethane foam absorber designed for Antenna test chambers. It provides wideband absorption from 0.5 GHz up to 110GHz with low reflectivity, high power handling, fire resistance, and stable performance for accurate testing environments.

  • Frequency range 80MHz to 110GHz
  • Typical reflectivity as high as -50dB
  • Power handling capacity 1.5kW/m2,540 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 90°C
  • RoHS Compliant
  • Zero Carbon dust
Part number reference:

DMC-PU-PY-MI-50, DMC-PU-PY-MI-100, DMC-PU-PY-MI-200, DMC-PU-PY-MI-300, DMC-PU-PY-MI-500, DMC-PU-PY-MI-700, DMC-PU-PY-MI-1000

Model Number 30 MHz 80 MHz 300 MHz 500 MHz 1 GHz 3 GHz 6 GHz 10 GHz 18 GHz 40 GHz 110 GHz
DMC-PU-PY-MI-50 30 35 40 50 45
DMC-PU-PY-MI-100 30 35 40 45 50 45
DMC-PU-PY-MI-200 27 35 40 45 50 50 48
DMC-PU-PY-MI-300 25 35 40 50 50 50 50 47
DMC-PU-PY-MI-500 20 30 40 45 50 50 50 50 48
DMC-PU-PY-MI-700 8 25 35 40 50 50 50 50 50 48
DMC-PU-PY-MI-1000 11 30 40 45 50 50 50 50 50 47
DMC-PU-PY-MI-1200 5 13 35 40 45 50 50 50 50 50 47

Dimensions


Model Number Overall Width Overall Height Base Thickness Tip Base Width No. of Tips Overall Weight (Kg)
DMC-PU-PY-MI-50 610 x 610 mm 50 mm 10 mm 20 mm 900 0.54
DMC-PU-PY-MI-100 610 x 610 mm 100 mm 20 mm 36 mm 225 0.79
DMC-PU-PY-MI-200 610 x 610 mm 200 mm 50 mm 65 mm 81 1.44
DMC-PU-PY-MI-300 610 x 610 mm 300 mm 60 mm 100 mm 36 2.52
DMC-PU-PY-MI-500 610 x 610 mm 500 mm 65 mm 145 mm 16 3.96
DMC-PU-PY-MI-700 610 x 610 mm 700 mm 130 mm 195 mm 9 5.76
DMC-PU-PY-MI-1000 300 × 300 mm 1000 mm 150 mm 300 mm 1 1.98
DMC-PU-PY-MI-1200 400 × 400 mm 1200 mm 200 mm 400 mm 1 4.00

Post a comment

Overall

0.0

(00 Reviews)

Based on 0 Reviews

Add a Review

Your Rating:

Outstanding

Frequently Asked Questions

The DMC-PU-PY-MI-200 RF Microwave Absorber is designed for anechoic chambers, EMC testing facilities, antenna measurement systems, and RF laboratories. It helps absorb electromagnetic waves and reduce unwanted reflections, ensuring accurate RF and microwave measurements.
The absorber supports broadband RF and microwave frequencies from approximately 80 MHz up to 100 GHz, making it suitable for EMC testing, antenna measurements, wireless communications, radar systems, aerospace, and defense applications.
The DMC-PU-PY-MI-200 is manufactured from carbon-impregnated low-density polyurethane foam, providing excellent RF absorption performance, lightweight construction, and long-term environmental stability.
Key features include broadband microwave absorption, excellent reflectivity performance, fire-retardant construction, RoHS compliance, low carbon dust generation, high power handling capability, and continuous operating temperatures up to 90°C.
The absorber is ideal for antenna radiation pattern measurements, EMC compliance testing, OTA testing, wireless device evaluation, radar testing, aerospace RF applications, satellite communication systems, telecom research, and microwave measurement laboratories.
