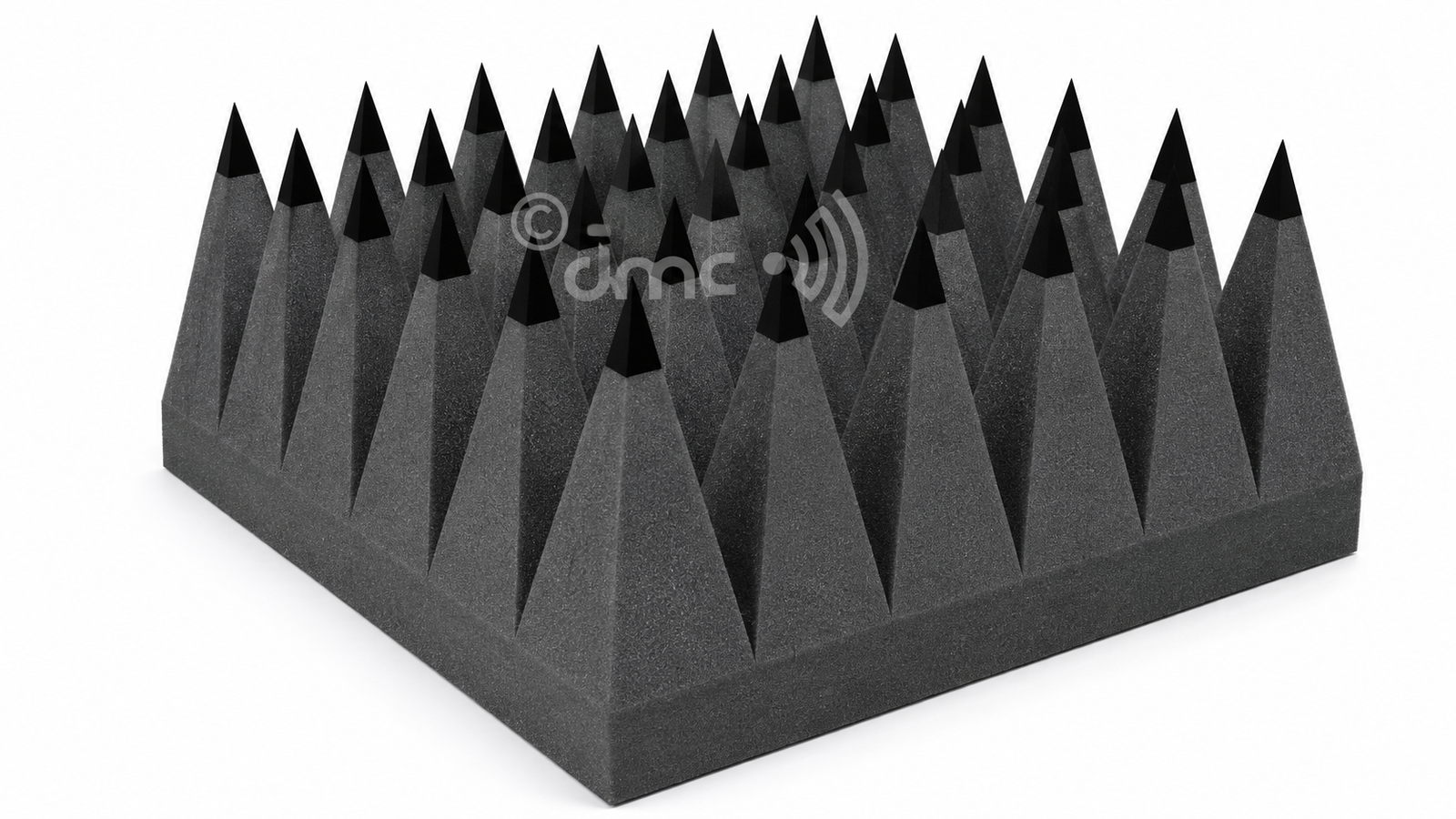

The DMC-PU-PY-HY-300 RF and Microwave Absorber is a high-performance pyramidal hybrid EMC absorber made from carbon-impregnated polyurethane foam. Designed for anechoic chambers and EMC testing environments, it supports frequencies from 30MHz to 40GHz with excellent reflectivity, fire resistance, and reliable RF absorption performance.

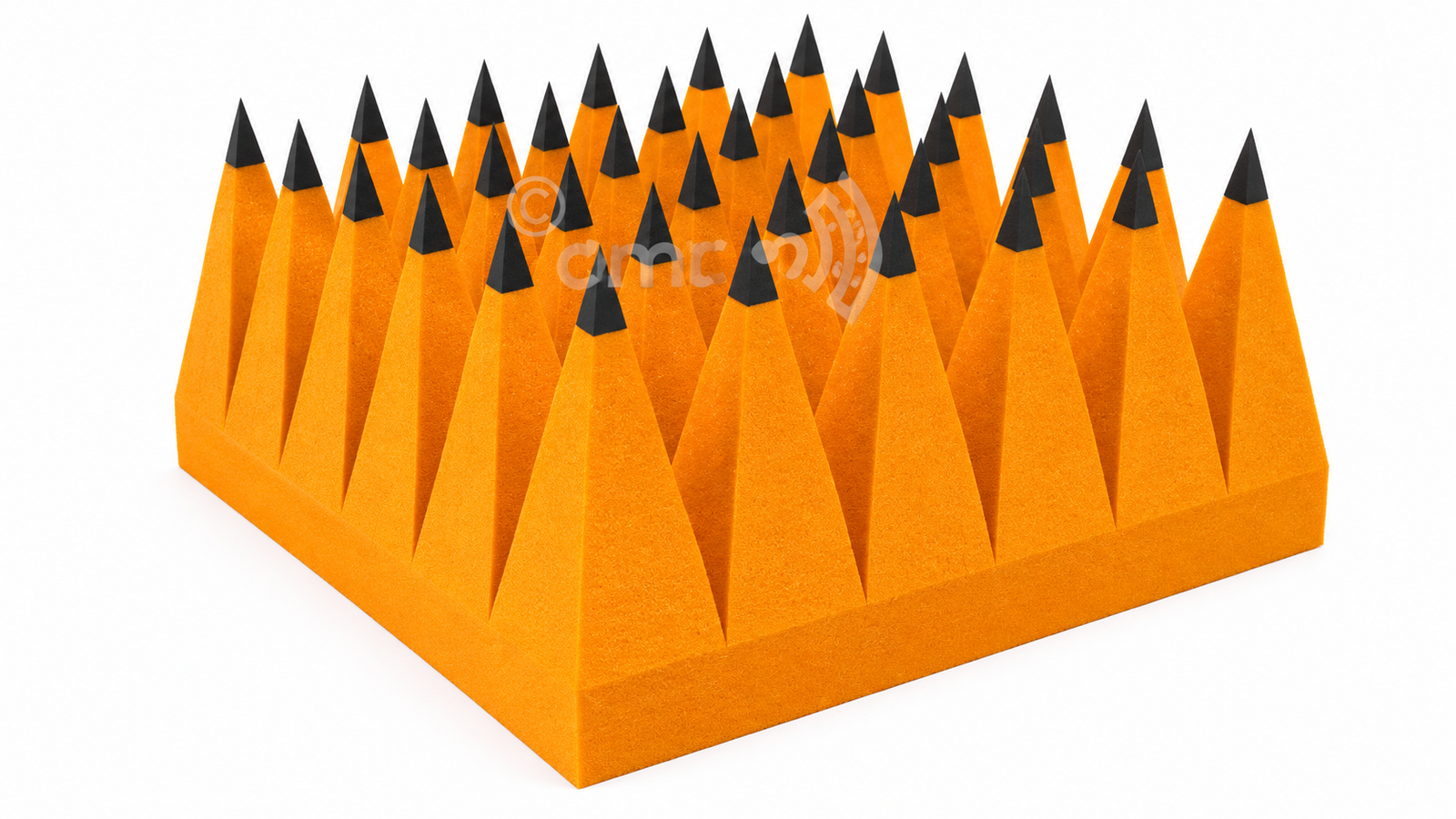

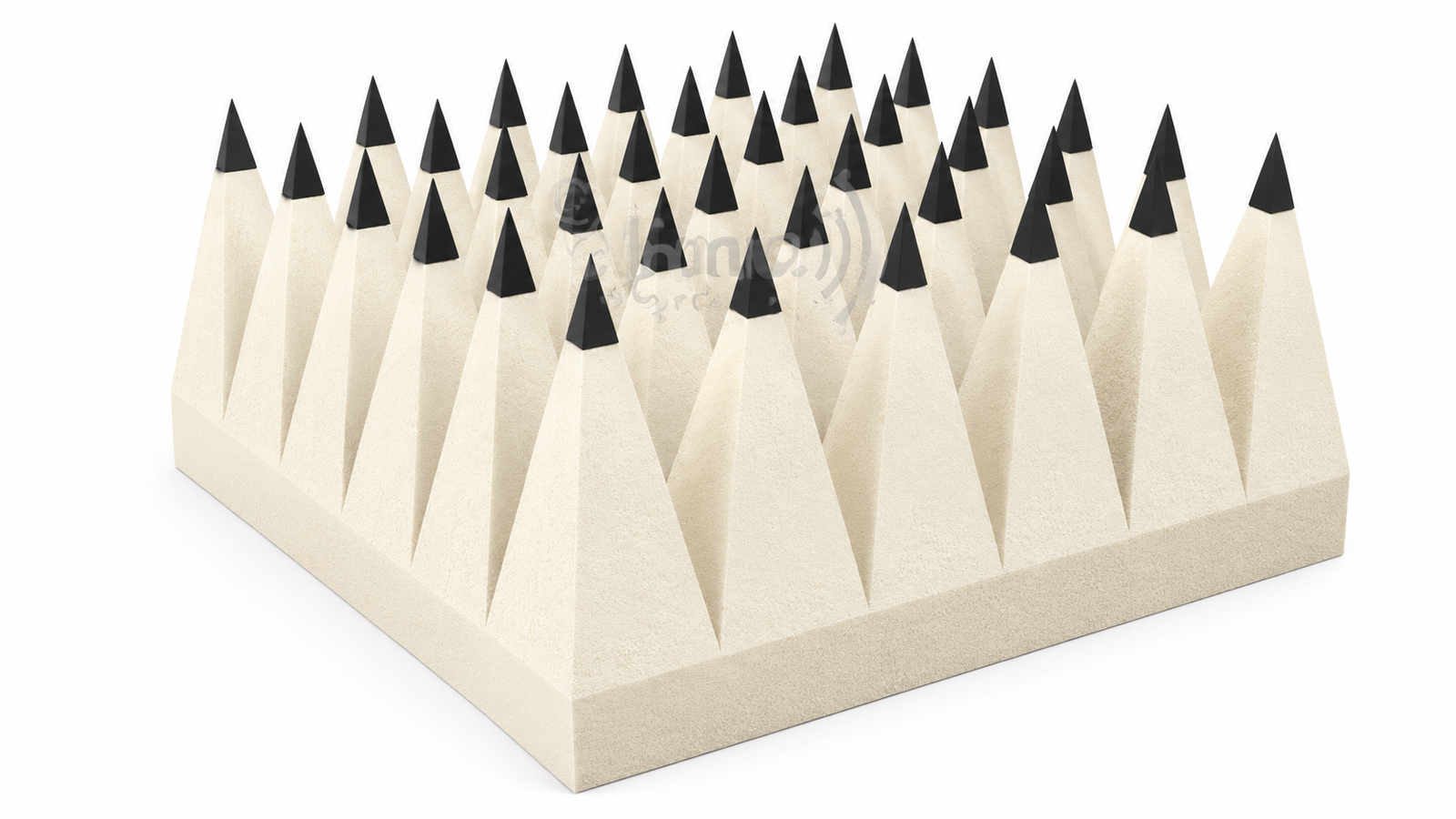

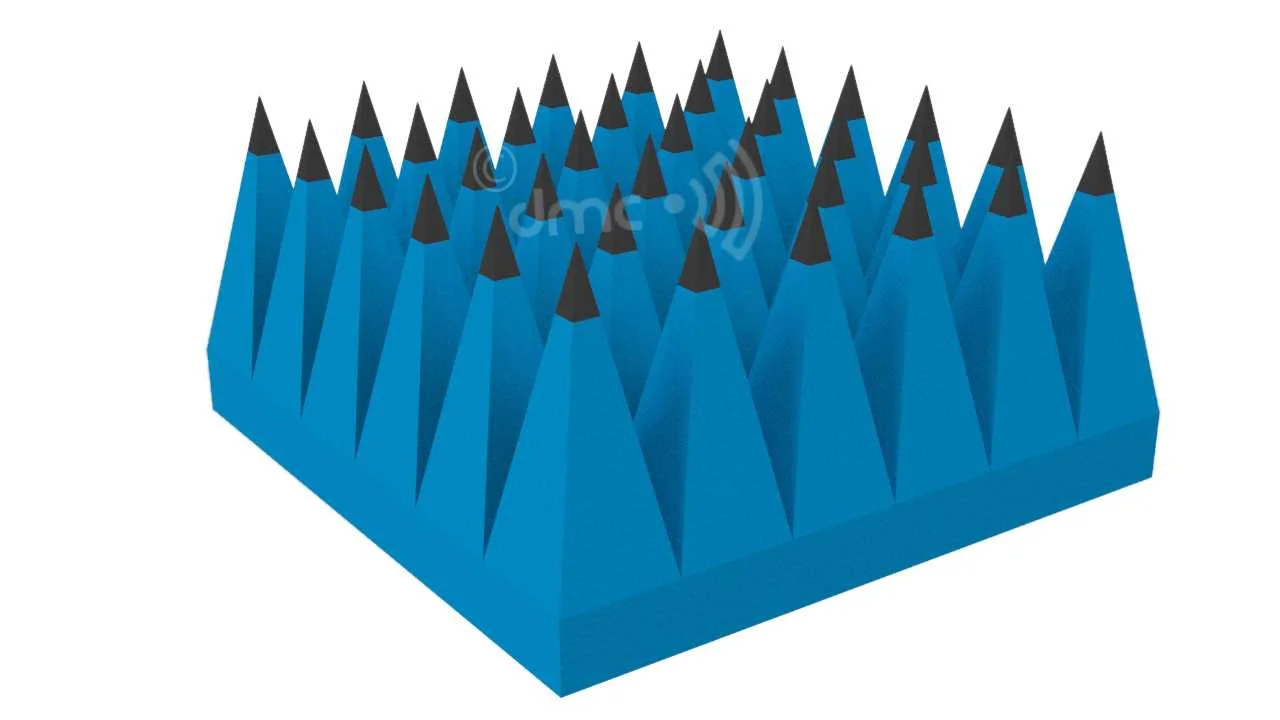

DMC offers premium quality high power RF Pyramidal foam EMC absorbers made of carbon impregnated low density Polyurethane foam and comes in various size and color. Our PY-HY series absorbers provide excellent performance in normal incidence and off angle incidence in Anechoic chamber with excellent impedance matching with Ferrite tiles and support wide frequency bands of operation up to 40 GHz.
DMC-PU-PY-HY-200, DMC-PU-PY-HY-300, DMC-PU-PY-HY-500, DMC-PU-PY-HY-700, DMC-PU-PY-HY-1000
| Model Number | 30 MHz | 80 MHz | 300 MHz | 500 MHz | 1 GHz | 3 GHz | 6 GHz | 10 GHz | 18 GHz | 40 GHz |
|---|---|---|---|---|---|---|---|---|---|---|
| DMC-PU-PY-HY-200 | 11 | 21 | 15 | 17 | 11 | 10 | 11 | 13 | 15 | 15 |
| DMC-PU-PY-HY-300 | 11 | 21 | 16 | 17 | 11 | 13 | 15 | 20 | 20 | 20 |
| DMC-PU-PY-HY-500 | 12 | 21 | 17 | 19 | 17 | 17 | 20 | 25 | 25 | 25 |
| DMC-PU-PY-HY-700 | 14 | 23 | 20 | 20 | 18 | 20 | 25 | 25 | 30 | 30 |
| DMC-PU-PY-HY-1000 | 15 | 25 | 25 | 25 | 23 | 22 | 28 | 28 | 35 | 35 |
