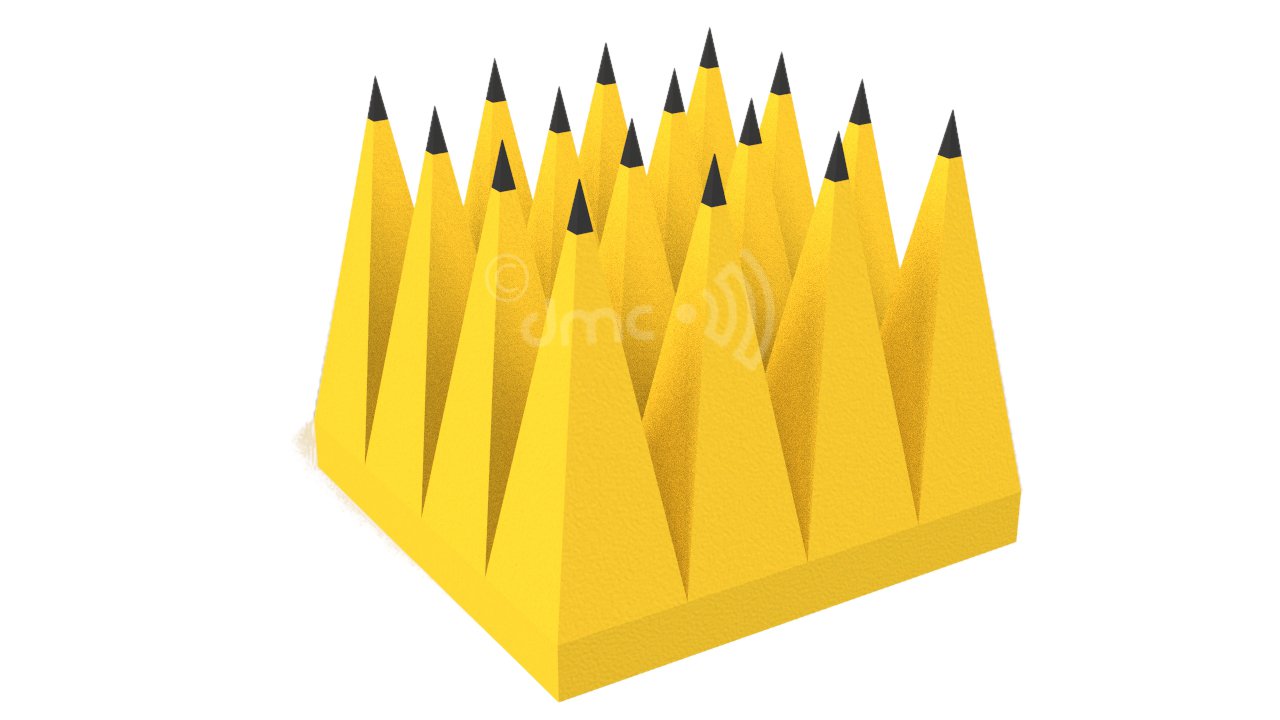

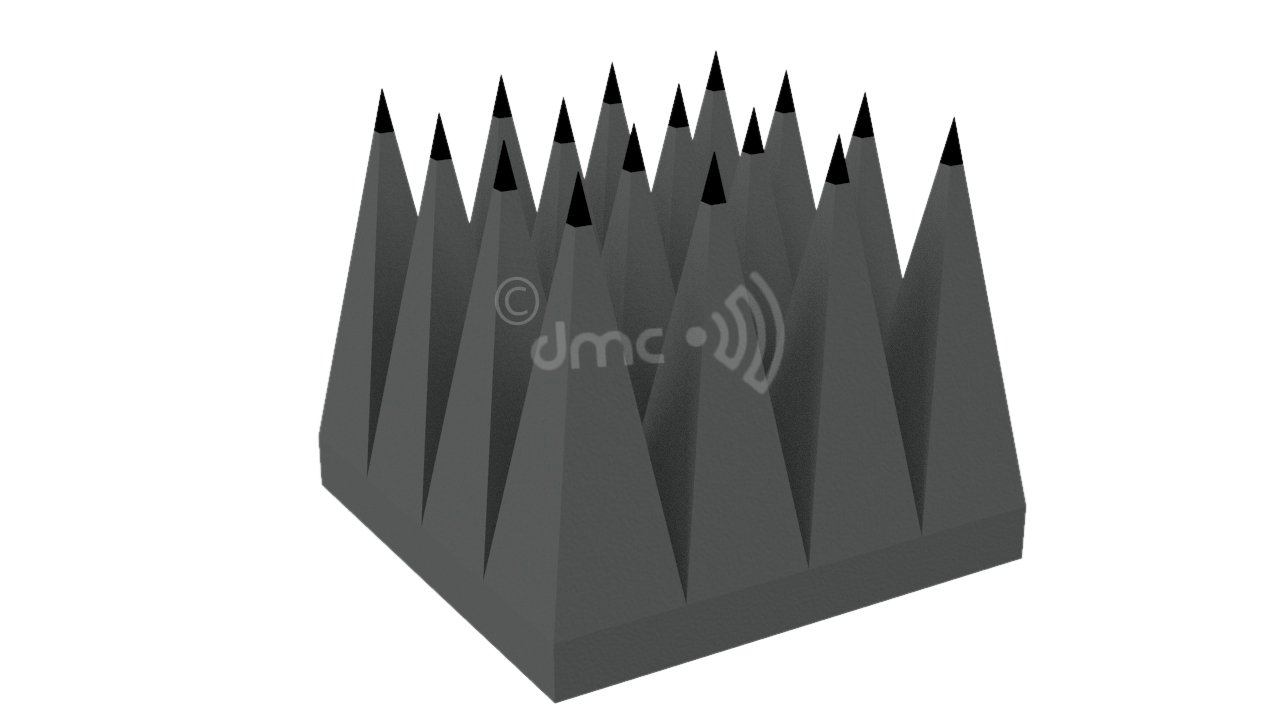

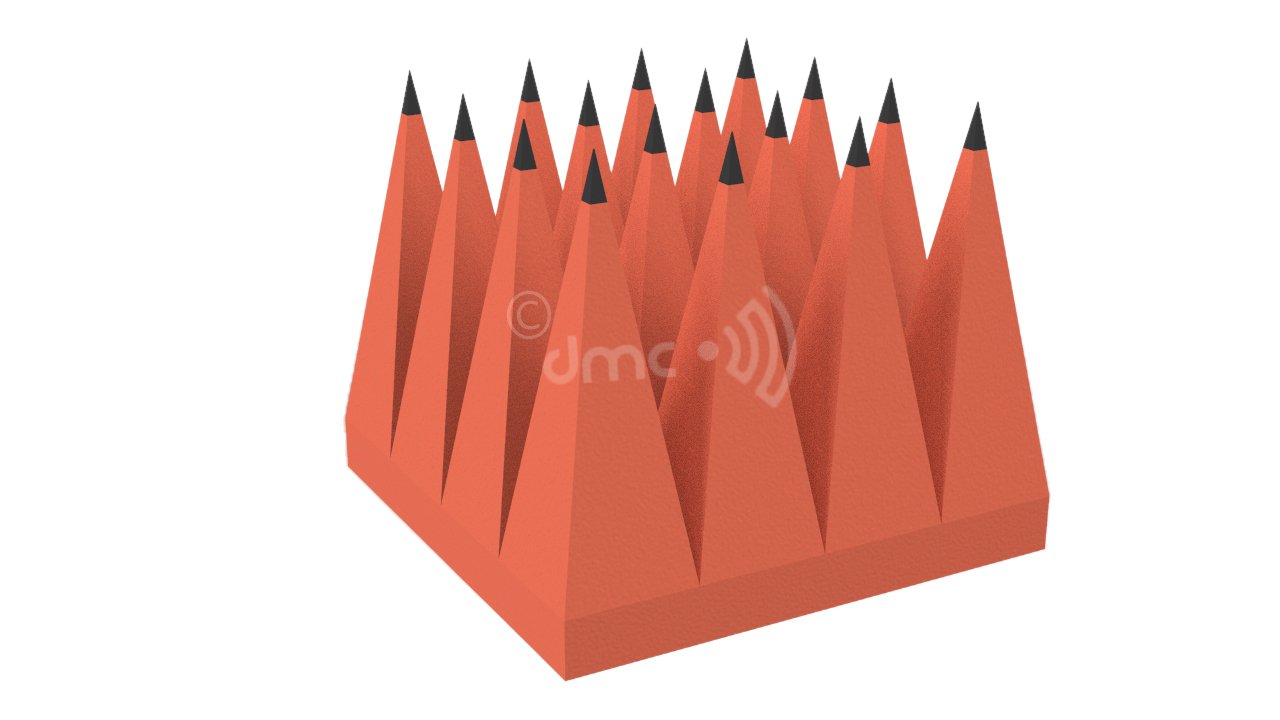

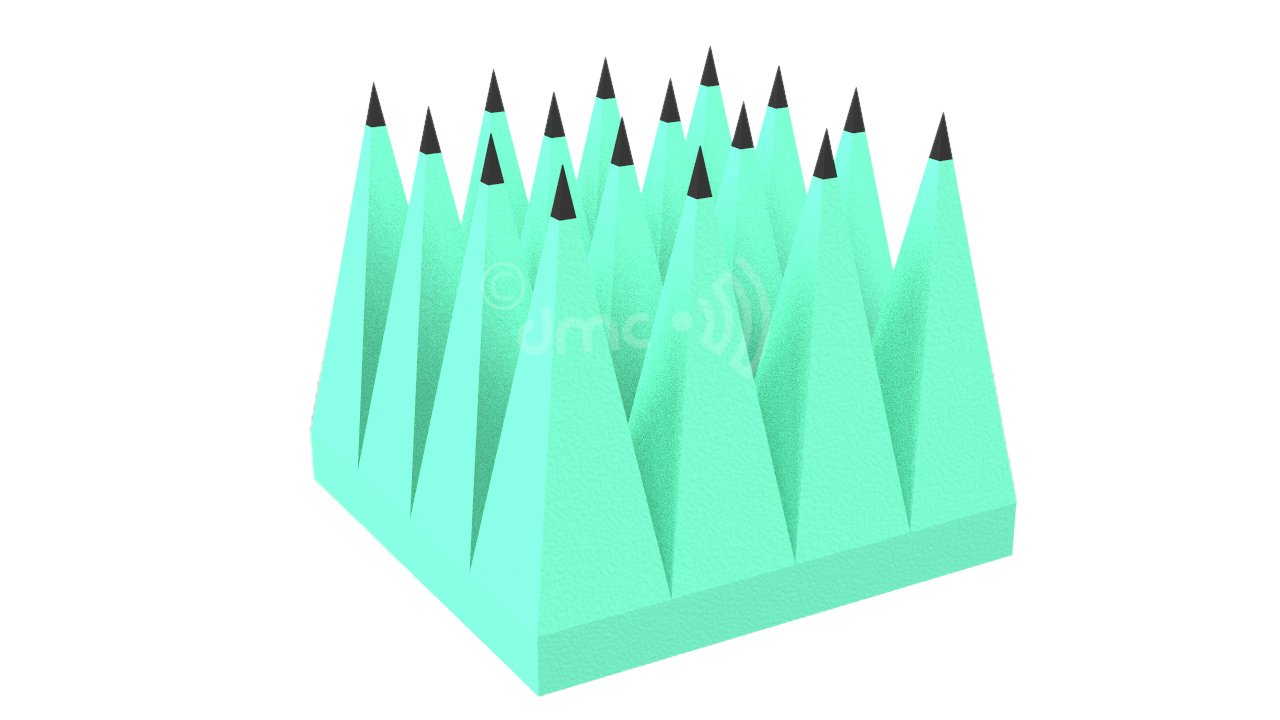

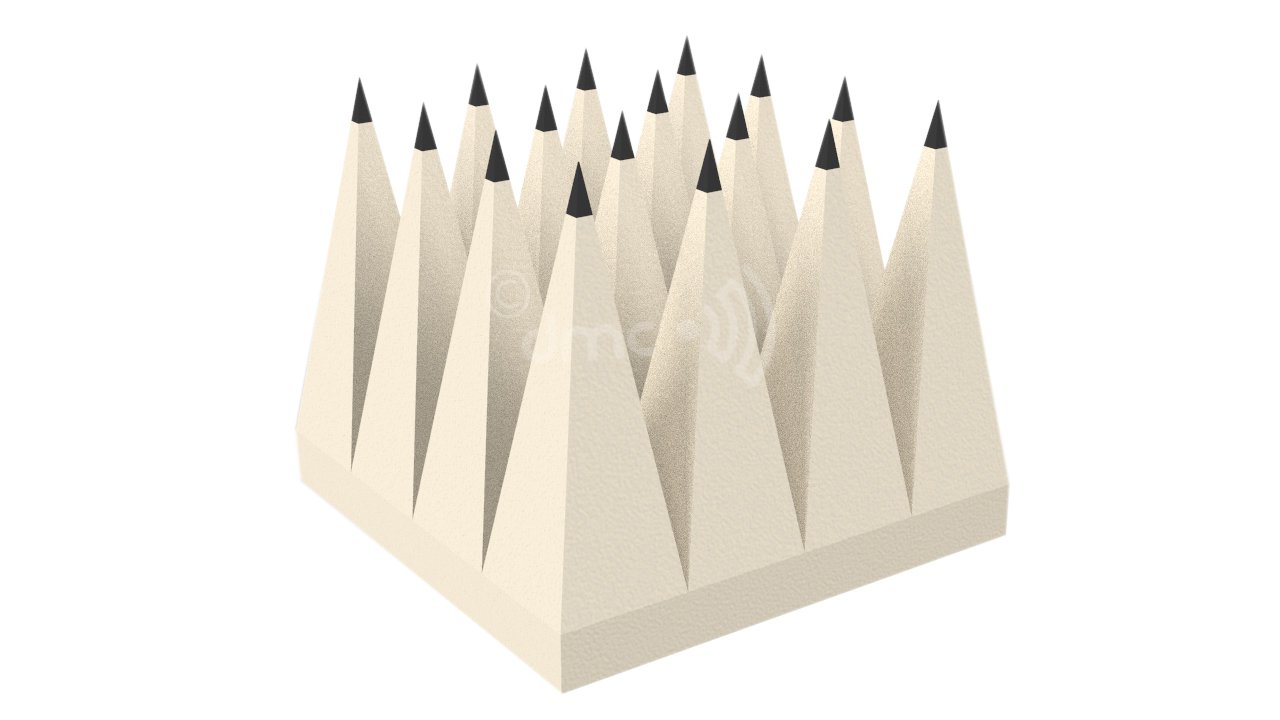

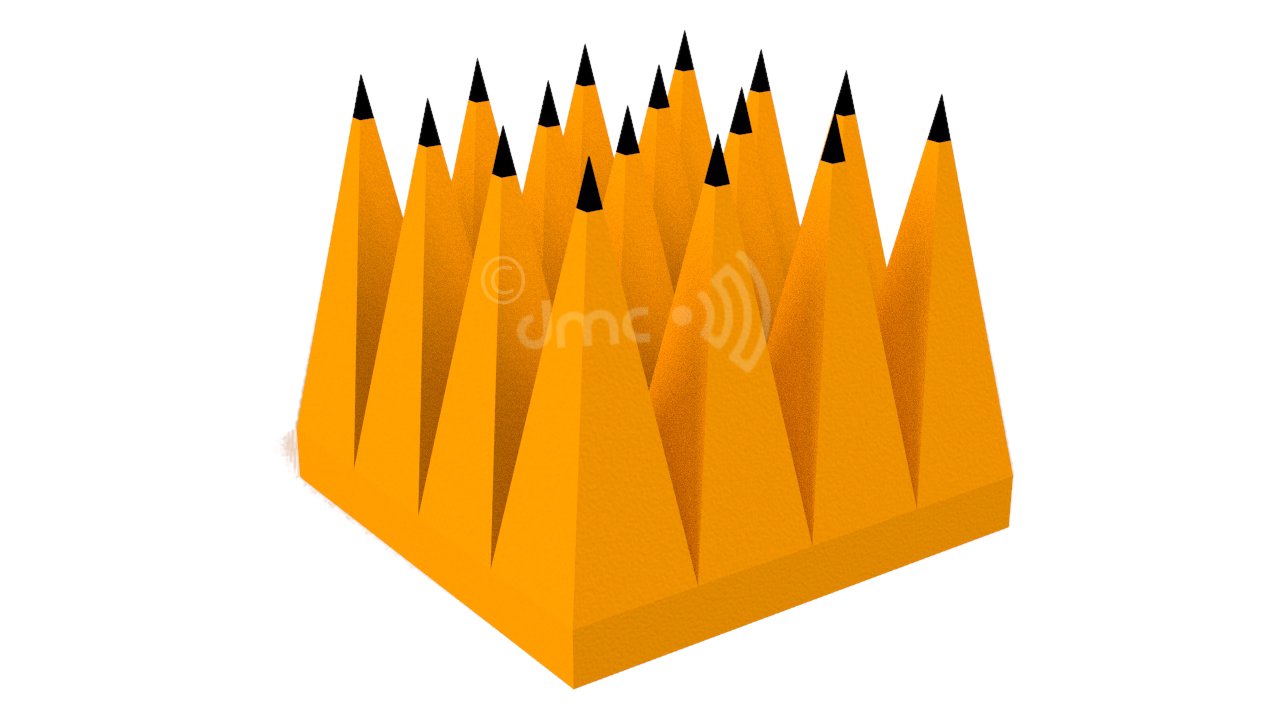

The DMC-PU-PY-HY-500 RF and Microwave Absorber is a high-performance pyramidal hybrid EMC absorber made of carbon-impregnated polyurethane foam. It offers wideband absorption from 30MHz to 40GHz, low reflectivity, high power handling, and is ideal for anechoic chamber and RF testing environments.
DMC offers premium quality high power RF Pyramidal foam EMC absorbers made of carbon impregnated low density Polyurethane foam and comes in various size and color. Our PY-HY series absorbers provide excellent performance in normal incidence and off angle incidence in Anechoic chamber with excellent impedance matching with Ferrite tiles and support wide frequency bands of operation up to 40 GHz.
DMC-PU-PY-HY-200, DMC-PU-PY-HY-300, DMC-PU-PY-HY-500, DMC-PU-PY-HY-700, DMC-PU-PY-HY-1000
| Model Number | 30 MHz | 80 MHz | 300 MHz | 500 MHz | 1 GHz | 3 GHz | 6 GHz | 10 GHz | 18 GHz | 40 GHz |
|---|---|---|---|---|---|---|---|---|---|---|
| DMC-PU-PY-HY-200 | 11 | 21 | 15 | 17 | 11 | 10 | 11 | 13 | 15 | 15 |
| DMC-PU-PY-HY-300 | 11 | 21 | 16 | 17 | 11 | 13 | 15 | 20 | 20 | 20 |
| DMC-PU-PY-HY-500 | 12 | 21 | 17 | 19 | 17 | 17 | 20 | 25 | 25 | 25 |
| DMC-PU-PY-HY-700 | 14 | 23 | 20 | 20 | 18 | 20 | 25 | 25 | 30 | 30 |
| DMC-PU-PY-HY-1000 | 15 | 25 | 25 | 25 | 23 | 22 | 28 | 28 | 35 | 35 |
