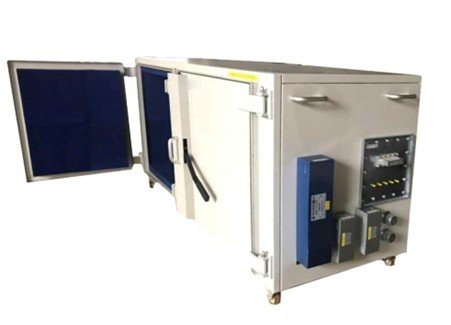

DMC-5G-mmW Millimeter Wave RF Shielded Enclosure

$30000

DMC-5G-mmW RF Shielded Enclosure is a compact high-performance OTA testing solution designed for 5G FR2, mmWave, RF, and antenna measurements. Fully lined with microwave absorbers, it provides excellent shielding effectiveness above 70 dB and supports accurate interference-free testing from 20 GHz to 40 GHz.

Quantity:

Add to Cart

The DMC-5G-mmW series millimeter wave RF shielded enclosures are advanced and compact direct field OTA test enclosures occupying minimal floor space. 100 mm thick high performance microwave absorber is fully lined on all walls, ceiling, and floor.

Features

Product: DMC Millimeter Wave RF Shielded Enclosure
Frequency range: 20 GHz to 40 GHz
Shielding effectiveness: >70dB
Inside shield to shield dimension: 2900 mm (L) x 1450 mm (W) x 1450 mm (H)
RF shielded door: 1200 mm x 1200 mm, 2 doors
RF shielded door location: DUT end and transmitting antenna end
Absorber height: 100 mm
DUT to horn antenna distance: 1800 mm
Honeycomb vent: 200 mm x 200 mm on both doors
I/O panels: 4 on DUT side and 2 on horn antenna side

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.

Positioner Detail	Specification
Footprint	12 in x 12 in (304 mm x 304 mm)
Total Height	22.5 in (571.5 mm)
Clearance Radius	18 in (914 mm) required for full 360 degree rotation
Total Weight	42 lbs (19 kg)
Turntable Movement Range	360 degree continuous or indexed
Turntable Resolution	0.02 degree full step / 0.00125 degree microstep
Gimbal Movement Range	360 degree continuous or indexed
Gimbal Resolution	0.05 degree full step / 0.00250 degree microstep
Controller	3 axis microprocessor based controller
Communication Interface	DB9 RS232 serial port with external USB adapter
Input Voltage	24VDC 3A

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.
