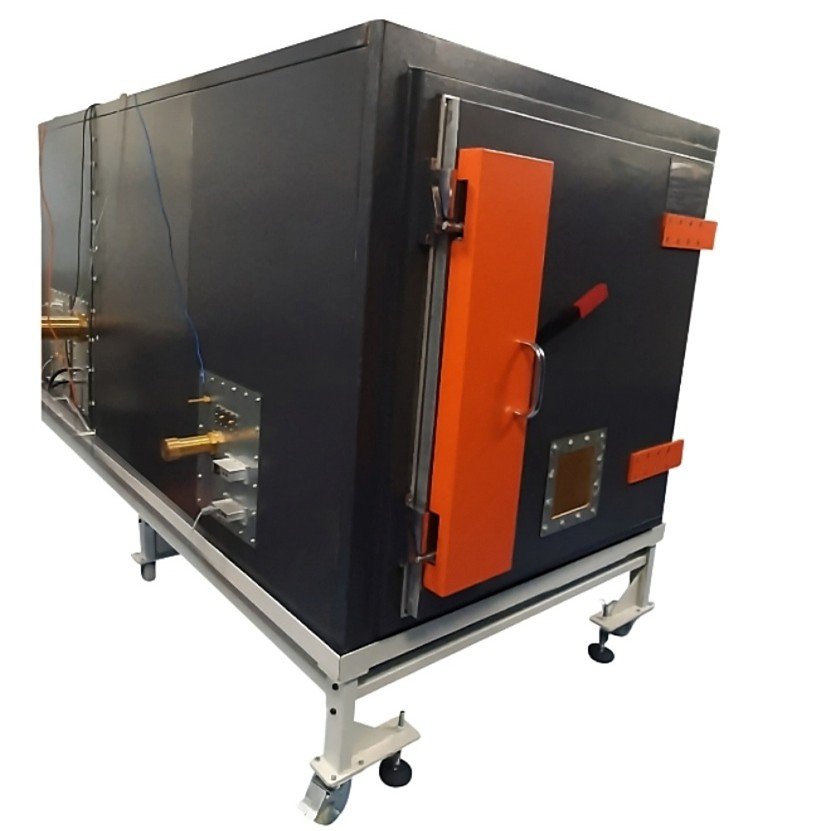

DMC-OTA-xxxx RF Shielded Enclosure

$25000

DMC-OTA-XXXX RF Shielded Enclosure is a high-performance OTA testing enclosure designed for RF, wireless, Sub-6GHz, and 5G mmWave applications. It provides excellent electromagnetic shielding, interference-free measurements, and reliable OTA performance testing with shielding effectiveness above 70 dB.

Quantity:

Add to Cart

The DMC-OTA-S6 series RF shielded enclosures are cost-effective for over-the-air (OTA) testing at 6GHz. Advanced shielding technology provides high isolation, making them suitable for OTA testing. These shield boxes can include racking options to incorporate instruments directly at the enclosure.

Features

Frequency 700MHz to 6GHz
Shielding effectiveness >=80dB
4 DUTs test in parallel
High efficient acquisition algorithm for processing TRP with multiple test probes, achieving +/-1dB accuracy
Supports TX, RSSI, BER, BLER, FER, EVM, RSE and other test indicators
Wireless communication with DUT to avoid USB impact to antenna frequency response
Manual or RS-232C/remote operation, suitable for automation line
Input AC power: 100-240V AC 50Hz

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.

Chamber Type	DMC-OTA-S6
Operation Mechanism	Manual Operation
Outer Dimension (Cabinet)	660(W) x 1113(D) x 1960(H)mm
Outer Dimension (Box)	660(W) x 600(D) x 1000(H)mm
Internal Dimension (Box)	560(W) x 830(D) x 594(H)mm
Door Opening Dimension (Cabinet)	660(W) x 1513(D) x 1960(H)mm
Door Dimension	407(W) x 115(H)mm
Open-close way	Pneumatic control
Color	Black/White or Custom
Weight	203kg

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.
