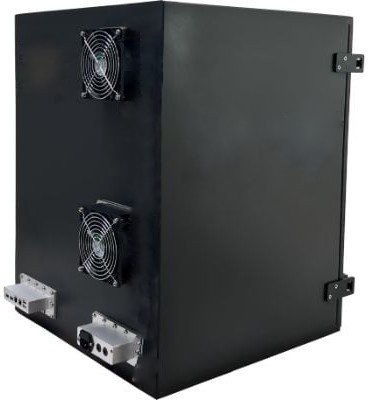

DMC-WSC-xxxx RF Shielded Cabinet

$9000

DMC-WSC-XXXX RF Shielded Enclosure is a high-performance shielding solution designed for RF, EMC, OTA, and wireless device testing applications. It provides excellent electromagnetic isolation, durable construction, and reliable shielding effectiveness up to 100 dB for accurate interference-free measurements.

Quantity:

Add to Cart

The DMC-WSC-xxxx series RF shielded cabinets are used for wireless device testing up to 12GHz. Advanced shielding technology provides high isolation, while high-performance RF absorbers lined inside the cabinet minimize reflections, deaden standing waves, and enhance measurement accuracy.

Features

Frequency range up to 12GHz
Shielding effectiveness >=80dB
Engineered for accurate and reliable WLAN and wireless device testing
Ideal for 802.11a/b/g/n/ac/ax/be, Bluetooth, RFID, 3G, 4G, and 5G LTE device testing
EMI, RFI, and pre-compliance device testing
OTA testing
Options available for a wide range of I/O panels with required connectors
RF shielded power filters, Ethernet, USB, HDMI, VGA, audio ports, and 6-way fiber optic ports
Honeycomb air vents with cooling fans for ventilation
Rugged and portable design with castor wheels for long life and easy movement

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.

Model Number	External size (D x W x H)	Shielding effectiveness	Interior with RF Absorber
DMC-WSC-455060	450mm x 500mm x 600mm	>=80dB	Yes
DMC-WSC-506070	500mm x 600mm x 700mm	>=80dB	Yes
DMC-WSC-556070	550mm x 600mm x 700mm	>=80dB	Yes
DMC-WSC-607080	600mm x 700mm x 800mm	>=80dB	Yes
DMC-WSC-708090	700mm x 800mm x 900mm	>=80dB	Yes
DMC-WSC-8090100	800mm x 900mm x 1000mm	>=80dB	Yes
DMC-WSC-9090110	900mm x 900mm x 1100mm	>=80dB	Yes

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.
