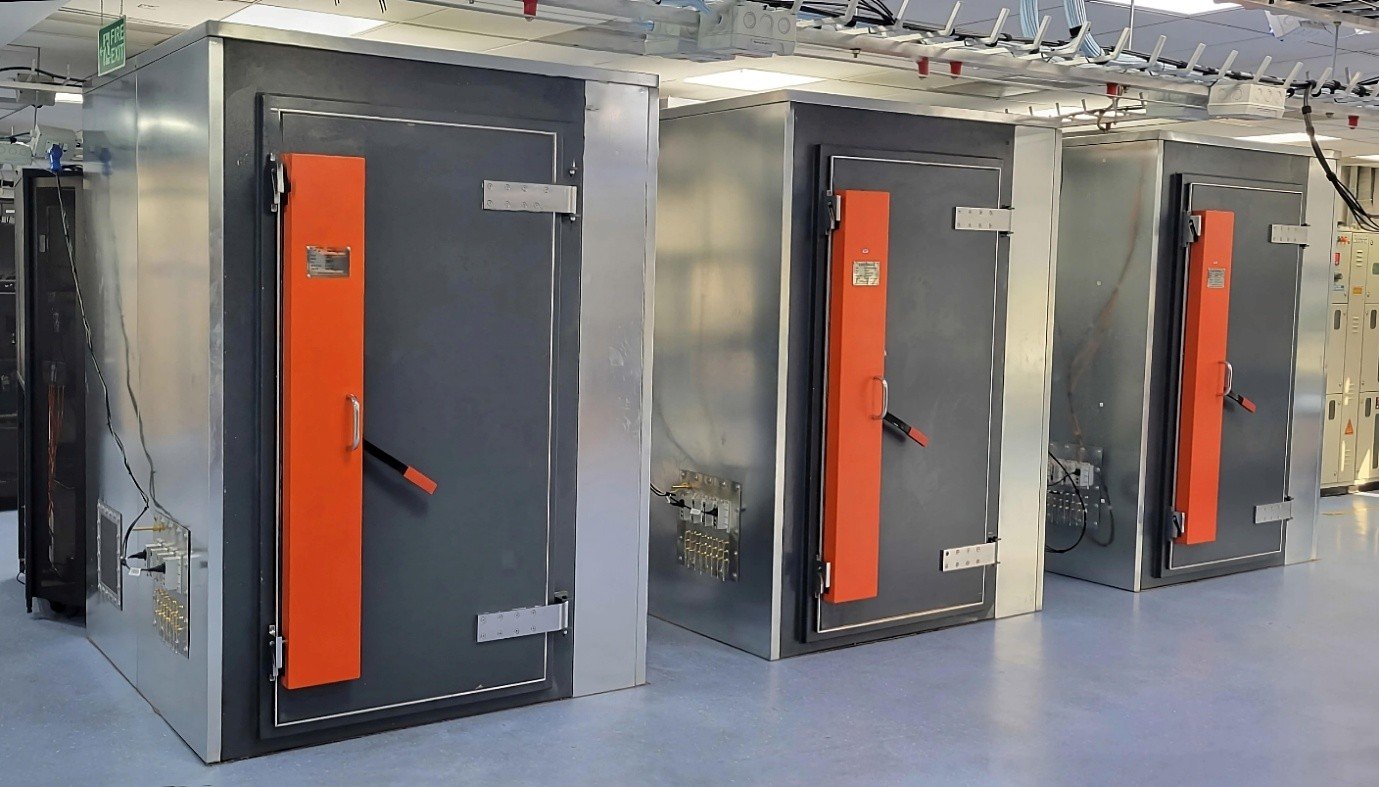

DMC-OTA-DUAL RF Shielded Enclosure

$15000

Dual OTA Testing RF Shielded Enclosure is a high-performance solution designed for 5G FR1, FR2, LTE, mmWave, and OTA testing applications. Featuring dual internally isolated compartments, it provides excellent shielding effectiveness above 80 dB, interference-free measurements, and reliable RF performance for advanced wireless device testing.

Quantity:

Add to Cart

The DMC-OTA-DUAL series RF shielded enclosures are cost-effective solutions for OTA testing for mmWave applications with two internally isolated compartments. The lower section is ideal for placing test equipment such as spectrum analyser, VNA, signal source, RF switching, and related instruments.

Features

Suitable for 5G applications such as low-frequency devices below 1 GHz, LTE-AP, 5G-NR, and mmWave FR1 and FR2
Chamber Type: DMC-RFE-OTA-DUAL
300MHz-40GHz
External dimension 850mm(W) x 950mm(L) x 1200mm(H)
Shielding effectiveness >80dB
Wireless communication with DUT to avoid USB impact to antenna frequency response
EMI filter on all data lines
Manual or RS-232C/remote operation, suitable for automation line
Input AC power: 100-240V AC 50Hz

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.

Typical Specification	Value
Chamber Type	DMC-RFE-OTA-DUAL
Frequency	300MHz-40GHz
External Dimension	850mm(W) x 950mm(L) x 1200mm(H)
Shielding Effectiveness	>80dB
Operation	Manual or RS-232C/remote operation
Input AC Power	100-240V AC 50Hz

I/O panel options: N-type, SMA, SMB, BNC, TNC connectors; Ethernet 10M, 100M, 1G; USB 2.0 and 3.0; 6-way fiber optic adapter; wavetube for fiber optic cable; data ports; AC/DC power filters.
