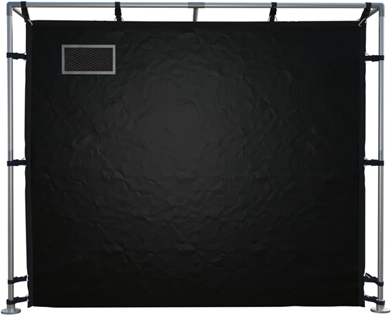

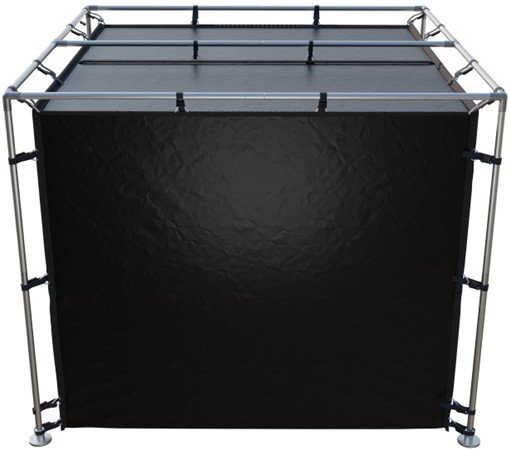

DMC RF Shielded Tents are portable electromagnetic shielding enclosures designed for temporary or semi-permanent RF isolation applications. These tents provide an economical and flexible alternative to traditional RF shielded rooms. RF shielded tents are ideal for EMC pre-compliance testing, wireless device testing, antenna measurements, secure communication testing, and field applications.
DMC RF Shielded Tents are portable electromagnetic shielding enclosures designed for temporary or semi-permanent RF isolation applications. These tents provide an economical and flexible alternative to traditional RF shielded rooms. RF shielded tents are ideal for EMC pre-compliance testing, wireless device testing, antenna measurements, secure communication testing, and field applications.
The RF shielded tent structure is manufactured using high-performance conductive shielding fabric. It has excellent attenuation performance over a wide frequency range. The modular and lightweight design enables quick installation, relocation and deployment at customer sites, laboratories, production areas, and outdoor locations.
Ideal for radiated emission and immunity pre-compliance testing of electronic products before formal certification testing.
Suitable for Wi-Fi, Bluetooth, Zigbee, LoRa, RFID, IoT, and cellular device evaluation in isolated RF environments.
Used for portable antenna testing and RF characterization where a compact shielded environment is required.
Provides isolated RF environment for tactical communication equipment testing and secure signal containment.
Can be installed directly in production floors or laboratories for troubleshooting, debugging, and development activities.
Portable design enables easy transport and temporary deployment for onsite RF testing applications.
DMC RF Shielded Tents are fabricated using multilayer conductive textile materials that provide excellent attenuation of electromagnetic interference. The internal conductive layers are designed to minimize RF leakage while maintaining mechanical flexibility and durability.
The tent frame is made from lightweight modular support structures for easy handling and installation. Entry systems are designed with conductive overlap or zipper shielding mechanisms to maintain RF integrity. Optional conductive flooring systems are available for improved shielding performance.
| Parameter | Typical Value |
|---|---|
| Frequency Range | 10 kHz to 40 GHz |
| Shielding Effectiveness | Up to 90-120 dB |
| Tent Material | Conductive Shielding Fabric |
| Frame Material | Lightweight Modular Structure |
| Installation Time | Fast Setup |
| Door Type | RF Shielded Zipper / Overlap Door |
| Ventilation | Optional RF Honeycomb Ventilation |
| Power Interface | Filtered AC Power Line |
| Customization | Available |
